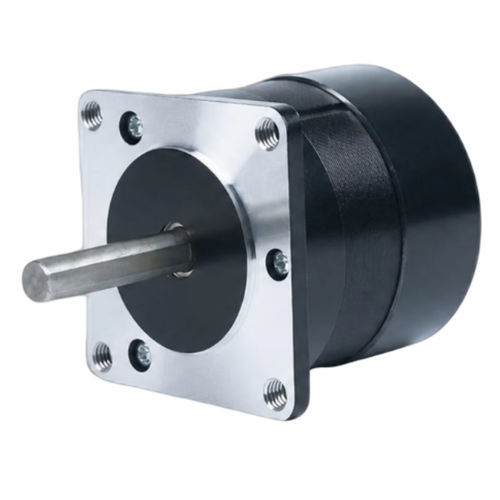

DC motor CW57BLMA54-100L2100-02

3-phaseBLDC240 V

Product overview
The CW57BLMA54-100L2100-02 is a 57mm (NEMA 23) 3-phase brushless DC motor designed for industrial automation, robotics and precision motion control applications. Nominal ratings: 100 W power, 24 ±10% VDC supply, 10000 RPM rated speed and 0.096 N·m rated torque.

Key highlights

• 100 W rated power
• 24 ±10% VDC supply voltage
• 0.096 N·m rated torque at 10000 RPM
• 57 mm (NEMA 23) frame size
• 3-phase brushless design for smooth operation

Quick specifications

• Rated Power: 100 W
• Rated Voltage: 24 ±10% VDC
• Rated Speed: 10000 RPM
• Rated Torque: 0.096 N·m
• Rated Current: 10 A
• Frame Size: 57 mm (NEMA 23)

Electrical Specifications (table)
Poles: 4
Phases: 3
Rated Voltage: 24 ±10% VDC
Rated Power: 100 W
Rated Speed: 10000 RPM
Rated Torque: 0.096 N·m
Rated Current: 10 A
Max Speed: 15000 RPM
Max Torque: 0.19 N·m
Voltage Constant: 1.5 ±5% Vrms/KRPM
Line Resistance: 0.3 ±5% Ω (20°C)
Line Inductance: 0.23 ±10% mH
Insulation Resistance: 100MΩ @ 500VDC
Insulation Class: B (130°C)
Weight: 0.9 kg
Frame Size: 57 mm (NEMA 23)
Part Number: CW57BLMA54-100L2100-02

Mechanical & performance visuals
Mechanical drawing and torque-speed curve are available for this model (mechanical drawing shows mounting and dimensional details; torque-speed curve shows torque vs. speed performance).

Technical specifications

• Frame: 57 mm (NEMA 23)
• Power: 100 W
• Rated Voltage: 24 ±10% VDC
• Rated Speed: 10000 RPM
• Max Speed: 15000 RPM
• Rated Torque: 0.096 N·m
• Max Torque: 0.19 N·m
• Rated Current: 10 A
• Poles: 4
• Phases: 3
• Voltage Constant: 1.5 ±5% Vrms/KRPM
• Line Resistance: 0.3 ±5% Ω (20°C)
• Line Inductance: 0.23 ±10% mH
• Insulation: 100 MΩ @ 500 VDC, Class B (130°C)
• Weight: 0.9 kg
• Part Number: CW57BLMA54-100L2100-02
