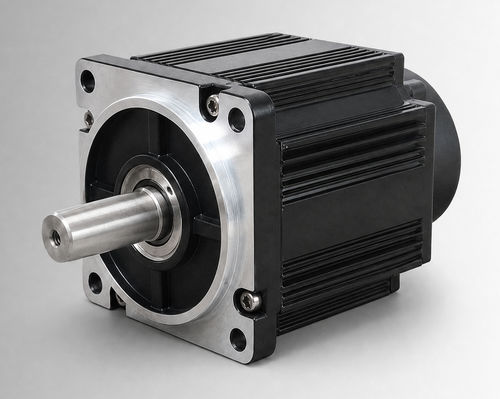

Brushless motor CW110BLBT-06020-L3-H

DCBLDC48 V

Product Overview
CW110BLBT-06020-L3-H is a 110mm framed high-power brushless DC motor rated at 1250 W, 48VDC, 6 N·m and 2000 rpm. It is intended for OEM and system-integration evaluation in electro-hydraulic pump drives, mobile work functions and brushed DC upgrade projects. It can be assessed for compact industrial equipment and auxiliary drives once voltage, load, duty cycle, installation interface and environmental conditions are confirmed for the project.

Key Highlights

• 1250 W rated power
• 48VDC rated voltage
• 6 N·m rated torque at 2000 rpm
• 32±10% Arms rated current

Electrical & Mechanical Specifications
Rated Power: 1250 W
Rated Voltage: 48VDC
Rated Torque: 6 N·m
Rated Speed: 2000 rpm
Rated Current: 32±10% Arms
Frame Size: 110 mm
Torque Constant: 0.19±10% N·m/A
Rotor Inertia: 10.9±10% kg·m² × 10⁻⁴
Back EMF: 11.2±10% V/krpm
Line Inductance: 0.162±10% mH
Line Resistance: 0.072±10% Ω
Body Length (L): 156 mm
Body Length with Brake (LB): 193 mm
Weight: 6.36/8.47 kg
Feedback Element (Option): Magnetic Hall / Hall + 2500-line incremental encoder (optional)
Insulation Resistance: DC500V, >20 MΩ (Class F)
Dielectric Strength: 800VAC/1s/5mA
Operating Environment: Temperature: -20 to 40°C (optionally -40 to 40°C); Humidity: 20% to 80% RH (non-condensing); altitude below 1000 m (derate when exceeding the stated temperature or altitude range)
Protection Class: IP54 (IP65 optional)
Part Number: CW110BLBT-06020-L3-H

Mechanical Drawing
Mechanical drawing — 110mm standard structure (illustration available on product page).

Torque-Speed Characteristics
Torque-speed characteristics chart available on product page.

Technical Specifications

• Rated Power: 1250 W
• Rated Voltage: 48VDC
• Rated Torque: 6 N·m
• Rated Speed: 2000 rpm
• Rated Current: 32±10% Arms
• Frame Size: 110 mm
• Torque Constant: 0.19±10% N·m/A
• Rotor Inertia: 10.9±10% kg·m² × 10⁻⁴
• Back EMF: 11.2±10% V/krpm
• Line Inductance: 0.162±10% mH
• Line Resistance: 0.072±10% Ω
• Body Length (L): 156 mm
• Body Length with Brake (LB): 193 mm
• Weight: 6.36/8.47 kg
• Feedback Options: Magnetic Hall; Hall + 2500-line incremental encoder (optional)
• Insulation Resistance: DC500V, >20 MΩ (Class F)
• Dielectric Strength: 800VAC/1s/5mA
• Operating Environment: -20 to 40°C (optionally -40 to 40°C); 20% to 80% RH non-condensing; altitude below 1000 m
• Protection Class: IP54 (IP65 optional)
• Part Number / Model: CW110BLBT-06020-L3-H
