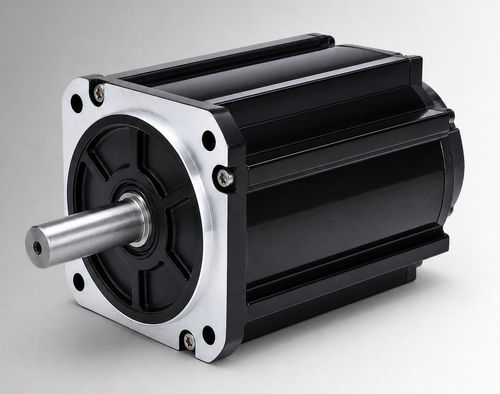

Brushless motor CW130BLBT-05030-L6-H

DCBLDC96 V

Product Overview
The CW130BLBT-05030-L6-H is a 130 mm framed brushless DC (BLDC) motor delivering 1550 W at a rated voltage of 96 VDC. Rated torque is 5 N·m at 3000 rpm. The unit is designed for OEM and system-integration evaluation in applications such as electro-hydraulic pump drives, mobile work functions and as an upgrade path for brushed DC systems. It can also be applied to compact industrial equipment and auxiliary drives after validating voltage, load, duty cycle, mounting interface and environmental constraints for the project.

Key Highlights

• Rated power: 1550 W
• Rated voltage: 96 VDC
• Rated torque: 5 N·m @ 3000 rpm
• Rated current: 17.5±10% Arms
• Frame size: 130 mm
• Optional feedback: Hall / Hall + 2500-line incremental encoder
• Protection: IP54 standard (IP65 optional)

Electrical & Mechanical Specifications

• Part number: CW130BLBT-05030-L6-H
• Rated Power: 1550 W
• Rated Voltage: 96 VDC
• Rated Torque: 5 N·m
• Rated Speed: 3000 rpm
• Rated Current: 17.5±10% Arms
• Torque Constant: 0.27±10% N·m/A
• Rotor Inertia: 12±10% ×10⁻⁴ kg·m²
• Back EMF: 15.6±10% V/krpm
• Line Inductance: 0.25±10% mH
• Line Resistance: 0.024±10% Ω
• Body Length (L): 119 mm
• Body Length with Brake (LB): 166 mm
• Weight: 6 kg (standard) / 7.8 kg (with brake)
• Feedback element: Magnetic Hall or Hall + 2500-line encoder (optional)
• Insulation Resistance: DC 500 V, >20 MΩ (Class F)
• Dielectric Strength: 800 VAC / 1 s / 5 mA

Mechanical Drawings & Charts

• Mechanical drawing — 130 mm standard structure
• Mechanical drawing — 130 mm fan-cooled structure
• Torque–speed characteristic chart (product-specific)

Product Datasheet
Datasheet ID: CW130BLBT-05030-L6-H (manufacturer datasheet available for download).

Operating Environment & Protection

• Operating temperature: -20 to 40°C (optionally -40 to 40°C)
• Humidity: 20% to 80% RH (non-condensing)
• Altitude: recommended below 1000 m (derating may apply above stated temperature/altitude)
• Protection class: IP54 standard (IP65 optional)
