Brushless motor CW180BLBT-28020-L6-H

DCBLDC96 V

Overview

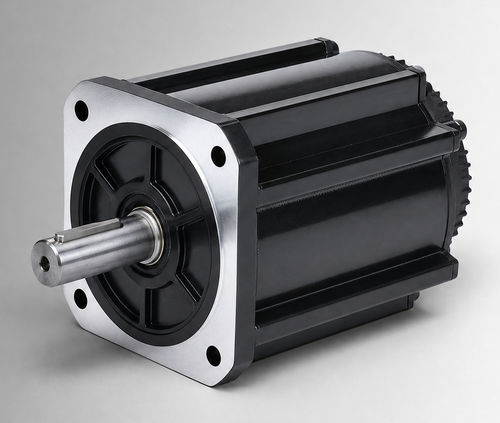

CW180BLBT-28020-L6-H is a 180mm framed high-power brushless DC motor rated at 5800 W, 96VDC, 28 N·m, and 2000 rpm. It is intended for OEM and system-integration evaluation in electro-hydraulic pump drives, mobile work functions, and brushed DC upgrade projects, while also supporting assessment for compact industrial equipment and auxiliary drives when voltage, load, duty cycle, installation interface, and environmental conditions are confirmed for the project.

Key Highlights

• 5800 W rated power
• 96VDC rated voltage
• 28 N·m rated torque at 2000 rpm
• 75±10% Arms rated current

Mechanical & Visual Assets

• Mechanical Drawing — 180mm Standard Structure (illustration)
• Mechanical Drawing — 180mm Fan-Cooled Structure (illustration)
• Torque-Speed Characteristics (graph)

Product Datasheet
CW180BLBT-28020-L6-H (product datasheet referenced on page)

Specifications

• Rated Power: 5800 W
• Rated Voltage: 96VDC
• Rated Torque: 28 N·m
• Rated Speed: 2000 rpm
• Rated Current: 75±10% Arms
• Frame Size: 180mm
• Torque Constant: 0.37±10% N·m/A
• Rotor Inertia: 122±10% kg·m² × 10⁻⁴
• Back EMF: 22.5±10% V/krpm
• Line Inductance: Not specified; tolerance ±10%
• Line Resistance: Not specified; tolerance ±10%
• Body Length (L): 264 mm
• Body Length with Brake (LB): 319 mm
• Weight: 32/34 kg
• Feedback Element (Option): Magnetic Hall / Hall + 2500-line incremental encoder (optional)
• Insulation Resistance: DC500V, >20 MΩ (Class F)
• Dielectric Strength: 800VAC/1s/5mA
• Operating Environment: Temperature -20 to 40°C ( -40 to 40°C optional); Humidity 20% to 80% RH (non-condensing); altitude below 1000 m (derate when exceeding the stated temperature or altitude range)
• Protection Class: IP54 (IP65 optional)
• Part Number: CW180BLBT-28020-L6-H
