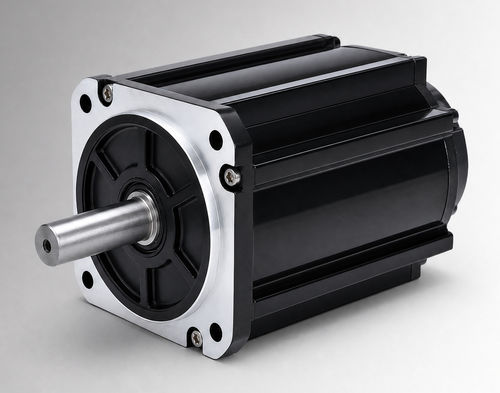

Brushless motor CW130BLBT-15030-L6-H

DCBLDC96 V

Overview
CW130BLBT-15030-L6-H is a 130 mm framed brushless DC motor rated 4700 W, 96VDC, 15 N·m at 3000 rpm. Designed for OEM evaluation and system integration, it is suitable for electro-hydraulic pump drives, mobile work functions, brushed-DC upgrades and compact industrial auxiliary drives provided voltage, load, duty cycle, mounting interface and environment meet project requirements.

Key highlights

• Rated power: 4700 W
• Rated voltage: 96VDC
• Rated torque: 15 N·m at 3000 rpm
• Rated current: 57±10% Arms

Summary values
Rated Power — 4700 W
Rated Voltage — 96VDC
Rated Torque — 15 N·m
Rated Speed — 3000 rpm
Rated Current — 57±10% Arms
Frame Size — 130 mm

Electrical & Mechanical Specifications
Rated Power — 4700 W
Rated Voltage — 96VDC
Rated Torque — 15 N·m
Rated Speed — 3000 rpm
Rated Current — 57±10% Arms
Frame Size — 130 mm
Torque Constant — 0.264±10% N·m/A
Rotor Inertia — 17±10% kg·m² × 10⁻⁴
Back EMF — 16±10% V/krpm
Line Inductance/Resistance — Not specified; tolerance ±10%
Body Length (L) — 166 mm
Body Length with Brake (LB) — 221 mm
Weight — 11 / 12.8 kg
Feedback Element (option) — Magnetic Hall / Hall + 2500-line incremental encoder (optional)
Insulation Resistance — DC500V, >20 MΩ (Class F)
Dielectric Strength — 800VAC/1s/5mA
Operating Environment — Temperature: -20 to 40°C (-40 to 40°C optional); Humidity: 20%–80% RH non-condensing; altitude below 1000 m (derate above stated temp/altitude)
Protection Class — IP54 (IP65 optional)
Part Number — CW130BLBT-15030-L6-H

Documents & drawings (visuals referenced)
Product datasheet available for part CW130BLBT-15030-L6-H (download on product page). Mechanical drawing — 130 mm Standard Structure. Mechanical drawing — 130 mm Fan-Cooled Structure. Torque-speed characteristics chart provided.

Technical characteristics

• Frame size: 130 mm
• Torque constant: 0.264±10% N·m/A
• Rotor inertia: 17±10% kg·m² × 10⁻⁴
• Back EMF: 16±10% V/krpm
• Body length L/LB: 166 mm / 221 mm (with brake)
• Weight: 11 kg (standard) / 12.8 kg (with brake)
• Feedback options: Magnetic Hall; Hall + 2500-line incremental encoder (optional)
• Protection: IP54 (IP65 optional)
• Environmental rating: -20 to 40°C (‑40 to 40°C optional); 20%–80% RH non-condensing; altitude below 1000 m
