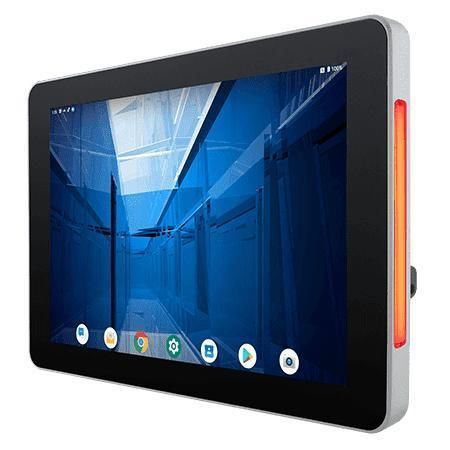

Multitouch screen panel PC W10MG3S-PCH2AC-POE

touch screenPCAP capacitive touch screen10.1"

Overview
Winmate W10MG3S-PCH2AC-POE is a 10.1-inch S Series HMI Panel PC designed for machine control, factory automation and operator HMI. It integrates a 10.1" 1280×800 projected capacitive (P‑CAP) multi-touch display, an ARM A78+A55 octa-core processor, fanless thermal design and front-side IP65 protection.

Product Summary
The S Series delivers 4-point P‑CAP multi-touch interaction, a built-in RGB LED status light bar, PoE (PD) support, and modular options including an optional 2MP front camera and optional HF RFID reader. Typical applications include room booking terminals, access control, room-information panels and general industrial HMI requiring quiet, low-power and reliable operation.

Key Features

• 10.1" 1280×800 resolution with Projected Capacitive multi-touch (P‑CAP)
• Built-in RGB LED light bar indicator (programmable, both sides)
• Power over Ethernet support (PD: IEEE 802.3at, 25 W)
• Optional 2MP front camera
• Optional HF RFID reader (13.56 MHz)
• Front IP65 rating for water and dust protection
• Fanless cooling for silent, low-power operation

Product Highlights
The fanless thermal architecture uses heat sinks and vapor chambers to ensure silent, reliable operation under industrial conditions. The integrated RGB light bar provides visible status feedback programmable for different states. PoE enables data and power over a single Ethernet cable for simplified installation and flexible placement. Optional WLAN/BT and HF RFID/NFC expand connectivity and identification capabilities.

Certifications
CE, FCC.

Technical specifications

• Display: 10.1 inches, 1280×800, Panel brightness 350 nits, Contrast ratio 800:1, Active area 216.96×135.6 mm
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Processor: ARM 2×A78 2.0 GHz + 4×A55 2.0 GHz
• Memory: 4 GB LPDDR4
• Storage: Onboard 32 GB
• OS: Android 13 (default); optional Linux Yocto 5.15.47 with Qt 5.15; optional Ubuntu 22.04
• Wireless: Optional WLAN, Bluetooth
• RFID: Optional HF 13.56 MHz reader
• Dimensions: 264×173×36 mm; Cut out: 250×159 mm; Weight: 1.2 kg
• Mounting: Panel mount, VESA mount
• Enclosure: Metal housing; Cooling: Fanless
• Environment: Operating humidity 10%–90% RH non‑condensing; Operating temperature 0°C to 50°C; Storage ‑20°C to 60°C
• Shock & Vibration: MIL‑STD‑810H Methods 516.8 & 514.8
• IP Rating: Front IP65
• IO Ports: 2×USB 2.0 Type A; 1×USB 2.0 Type C (OTG); 1×RS232/422/485 (default RS232); 1×LAN 10/100/1000 Mbps; optional Micro HDMI output; 1×Speaker; 1×Micro SD slot
• Power: Default 12 V DC via terminal block; optional 9–36 V; adapter 12 V 50 W; accessories include 100–240 V AC to DC adapter and power cord
• PoE: PD IEEE 802.3at (25 W)
