Multi-touch screen panel PC W10IM3S-PCH2AC-POE

PCAP capacitive touch screentouch screen10.1"

Overview

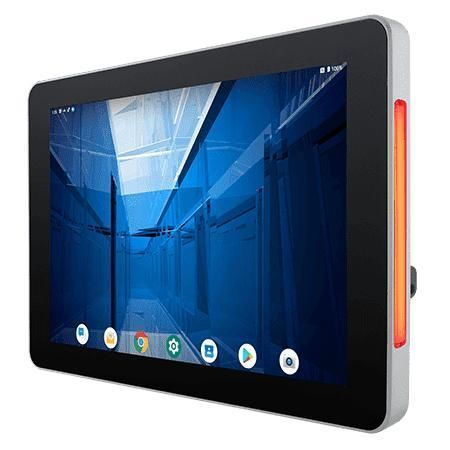

Winmate W10IM3S-PCH2AC-POE is a 10.1-inch ARM A53 S Series HMI Panel PC designed for machine control, factory automation, and operator HMI. It provides a rugged, reliable solution for industrial and embedded applications with fanless cooling and ultra-low power consumption. The device supports Power over Ethernet (PoE), optional 2MP front camera, optional HF RFID reader, built-in RGB LED light bar indicator, and can run Android or Linux operating systems.

Key features

• 10.1” 1280 x 800 resolution with Projected Capacitive Multi-Touch (P-CAP)
• Fanless cooling system and ultralow power consumption
• Support Power over Ethernet (PoE) function
• Optional 2MP front camera
• Optional HF RFID reader (13.56 MHz)
• Stylish, slim design suitable for room booking, access control, and room information applications
• Front IP65 water and dust proof
• Built-in RGB LED status light bar
• Supports Android or Linux operating systems

Power over Ethernet
The W10IM3S-PCH2AC-POE supports PoE (PD) following IEEE 802.3at (25 W), allowing data and power over a single cable to simplify installation and centralized power management for access control and industrial automation.

Stylish Design
S-series HMI is a slim, true-flat design (about 35% thinner than traditional panel PCs) for modern interiors and easy cleaning, minimizing dust accumulation on edges.

P-Cap Touch
Projected capacitive touch with glass cover lens supports multi-touch (4-point) and is resistant to scratches for reliable finger operation and improved user experience.

LED Light Bar & HF RFID
Built-in RGB LED light bar (selectable colors) indicates machine/process status from a distance and saves power by allowing display off. Optional HF RFID/NFC enables limited access control for authorized personnel.

Front IP65
The front panel is sealed to IP65, offering protection against dust ingress and water splashes for industrial environments.

Certifications

• CE
• FCC

Technical specifications

• Display: 10.1 inches; Projected Capacitive Multi-Touch; Resolution 1280 x 800; Panel brightness 350 nits; Contrast ratio 800:1; View angles 85/85/85/85; Active area 216.96 x 135.6 mm.
• System: Processor: ARM A53 (Quad Core 2.0 GHz); Memory: 4 GB LPDDR4; Storage: eMMC onboard 32 GB; Operating System: Android 11 (default, upgradeable to Android 13) — optional Linux Yocto 5.15.47 with Qt 5.15 and Linux Ubuntu Server 22.04; WLAN: optional; Bluetooth: optional; RFID: HF RFID Reader 13.56 MHz (optional); Light Bar: built-in RGB LED status light bar on both sides.
• Mechanical: Dimension 264 x 173 x 36 mm; Cut out 250 x 159 mm; Weight 1.2 kg; Mounting: Panel mount and VESA mount; Enclosure: Metal housing; Cooling system: Fanless design.
• Environment: Operating humidity 10% to 90% RH non-condensing; Operating temperature 0°C to 50°C; Storage temperature -20°C to 60°C; Shock: MIL-STD-810H Method 516.8 Procedure I; Vibration: MIL-STD-810H Method 514.8 Procedure I; IP rating: Front IP65.
• Certification: CE, FCC.
• IO Ports: USB: 2 x USB 2.0 Type A and 1 x Micro USB 2.0 OTG; Serial: 1 x RS232/422/485 (default RS232); LAN: 1 x LAN 10/100/1000 Mbps; Video: 1 x Micro HDMI output (optional); Audio: 1 x speaker; SD card: 1 x Micro SD card slot (max 32 GB).
• Power: Power rating 12 V DC with terminal block (default), 9~36 V optional; Adapter: 12 V 50 W; PoE: PD follows IEEE 802.3at (25 W).
• Camera: Front camera 2 MP (optional).
• Accessories: 100~240 V AC to DC adapter; power cord; terminal block to 2.5Ø female adapter cable; open wire cable with terminal block connector; VESA screws; manual.
