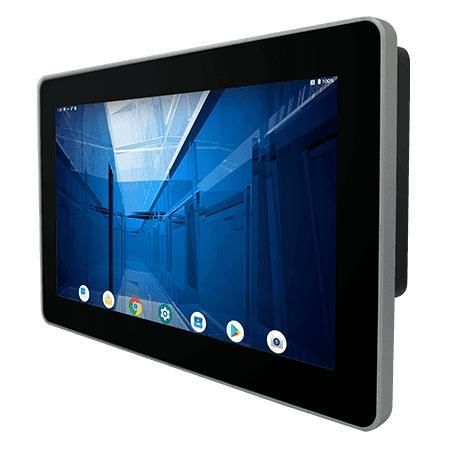

Multi-touch screen panel PC W10MG3S-PCH2-POE

touch screenPCAP capacitive touch screen10.1"

Overview
Winmate W10MG3S-PCH2-POE is a 10.1-inch S Series HMI Panel PC powered by an ARM 2 x A78 + 4 x A55 processor. It is designed for machine control, factory automation and operator interfaces where compact footprint, PoE integration and front IP65 protection are required. Default OS is Android 13; Linux Yocto and Ubuntu 22.04 are available as options.

Key features

• 10.1" display, 1280 x 800, Projected Capacitive Multi-Touch (P-CAP)
• Power over Ethernet (PoE) support (PD following IEEE 802.3at, 25 W)
• Optional 2 MP front camera
• Optional HF RFID reader (13.56 MHz)
• Front panel protection IP65
• Fanless cooling for silent, low-power operation

Product highlights and usage

• P-CAP touchscreen provides responsive 4-point multi-touch input suitable for industrial HMIs and operator panels.
• Fanless thermal design with heat sinks and vapor chamber ensures stable operation in continuous-use environments.
• Front IP65 rating protects against splashes and dust on the operator-facing side for reliable onsite use.
• PoE simplifies installation by delivering power and data over a single Ethernet cable, ideal for remote or space-constrained deployments.

Technical specifications

• Display - Size: 10.1 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen
• Display - Resolution: 1280 x 800
• Display - Panel Brightness: 350 nits
• Display - Contrast Ratio: 800:1
• Display - View Angles: 85/85/85/85
• Display - Active Area: 216.96 x 135.6 mm
• System - Processor: ARM 2 x A78 2.0 GHz + 4 x A55 2.0 GHz
• System - Memory: 4 GB LPDDR4
• System - Storage: Onboard 32 GB
• System - Operating System: Android 13 (Default); Linux Yocto 5.15.47 with Qt 5.15 (Optional); Ubuntu 22.04 (Optional)
• System - WLAN / Bluetooth: Support (optional)
• System - RFID: HF RFID Reader 13.56 MHz (optional)
• Mechanical - Dimension: 264 x 173 x 36 mm
• Mechanical - Cut out: 250 x 159 mm
• Mechanical - Weight: 1.2 kg
• Mechanical - Mounting: Panel mount; VESA mount
• Mechanical - Enclosure: Plastic front bezel with metal back cover
• Mechanical - Cooling System: Fanless design
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -20°C to 60°C
• Environment - Shock: MIL-STD-810H Method 516.8 Procedure I
• Environment - Vibration: MIL-STD-810H Method 514.8 Procedure I
• Environment - IP rating: Front IP65
• Certification: CE, FCC
• IO Ports - USB: 2 x USB 2.0 Type A; 1 x USB 2.0 Type C (OTG)
• IO Ports - Serial: 1 x RS232/422/485 (default RS232)
• IO Ports - LAN: 1 x LAN 10/100/1000 Mbps
• IO Ports - Video: 1 x Micro HDMI output (optional)
• IO Ports - Audio: 1 x Speaker
• IO Ports - SD Card Slot: 1 x Micro SD card slot
• Accessory: 100~240V AC to DC adapter; power cord; terminal block to 2.5Ø female adapter cable; open wire cable with terminal block connector; VESA screws
• Power - Power Rating: 12V DC with terminal block (default); 9~36V optional
• Power - Adapter: 12V 50W
• Power - PoE: PoE (PD) follows IEEE 802.3at (25 W)
• Camera - Front Camera: 2 MP (optional)
