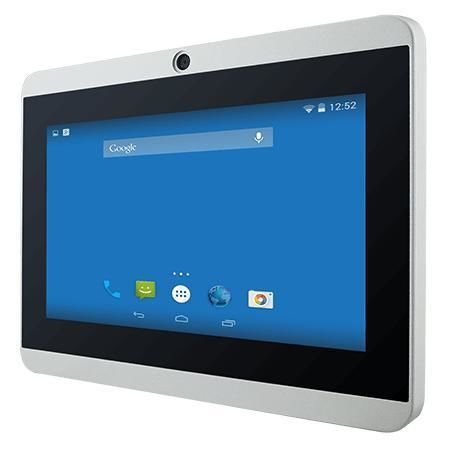

Multi-touch screen panel PC W07FA3S-PCO1-POE

PCAP capacitive touch screen1000 nits7"

Overview
The Winmate W07FA3S-PCO1-POE is a 7-inch NXP i.MX6 S-Series HMI Panel PC engineered for machine control, factory automation and operator HMI use. It features a slim S-Series design, front IP65 protection, fanless cooling and Power over Ethernet (PoE) support. Typical applications include access control, room booking terminals and industrial IoT interfaces.

Key Features

• 7-inch 1024 x 600 display with Projected Capacitive Multi-Touch (PCAP)
• Fanless cooling and ultra-low power consumption
• Power over Ethernet (PoE) PD support (IEEE 802.3at, up to 25 W)
• Optional 2 MP front camera
• Optional HF RFID reader (13.56 MHz)
• Front panel IP65 for dust and splash protection

Certifications

• CE
• FCC

Display

• Size: 7.0 inches
• Touch / Glass: Projected Capacitive Multi-Touch (PCAP)
• Resolution: 1024 x 600
• Panel Brightness: 1000 nits
• Contrast Ratio: 700:1
• Viewing Angles: 75/75/75/70
• Active Area: 153.6 x 90 mm

System Specification

• Processor: NXP i.MX6 Dual Core, 1.0 GHz
• Memory: 1 GB (default); 2 GB (optional)
• Storage: eMMC onboard 16 GB (default); 32 GB (optional)
• Operating Systems (optional): Linux Ubuntu 18.04, Android 6.0, Debian 7.0, Linux 4.1.15 QT 5.5
• WLAN / Bluetooth: optional support
• RFID: HF 13.56 MHz reader (optional)

Mechanical

• Dimensions: 189.4 x 145.4 x 39.8 mm
• Cut out: 175.5 x 131.5 mm
• Weight: 1.0 kg
• Mounting: Wall mount (default); VESA mount (optional)
• Enclosure: Metal housing
• Cooling: Fanless design

Environment

• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65

I/O Ports

• USB: 1 x Console (Mini USB); 1 x USB OTG; 1 x USB 2.0 Type-A
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x RJ45 with PoE (PD, IEEE 802.3at)
• Video: 1 x Micro HDMI (optional)
• Audio: 1 x Speaker
• SD Card: 1 x Micro SD slot
• Expansion: 1 x mPCIe slot (half-size)
• CANBUS: 1 x D-sub9
• Power Input: 1 x 12V DC, 2-pin terminal block

Accessory

• Included accessories: 100~240V AC to 12V DC adapter; power cord; terminal block to 2.5Ø female adapter cable; open wire cable with terminal block; VESA screws; driver CD & manual (depending on configuration)
• Optional accessories: VESA desk stand; front side wall mount kit; VESA bracket mounting kit; camera/RFID/Wi‑Fi modules

Power

• Power Rating: 12V DC
• Adapter: 12V 50W
• PoE: PD compliant with IEEE 802.3at (up to 25 W)

Technical specifications

• Model: W07FA3S-PCO1-POE
• Brand: Winmate
• Display: 7.0" 1024 x 600 PCAP, 1000 nits, 700:1
• Processor: NXP i.MX6 Dual Core 1.0 GHz
• Memory / Storage: 1 GB / 16 GB eMMC (default); optional upgrades
• Front IP rating: IP65
• Operating temp/humidity: 0°C to 50°C; 10%–90% RH non-condensing
• Dimensions / Weight: 189.4 x 145.4 x 39.8 mm / 1.0 kg
• I/O: USB, RS232/422/485, RJ45 with PoE, Micro HDMI (opt.), speaker, micro SD, mPCIe, CANBUS
• Power: 12V DC input; adapter 12V 50W; PoE PD IEEE 802.3at (25 W)
• Certifications: CE, FCC
