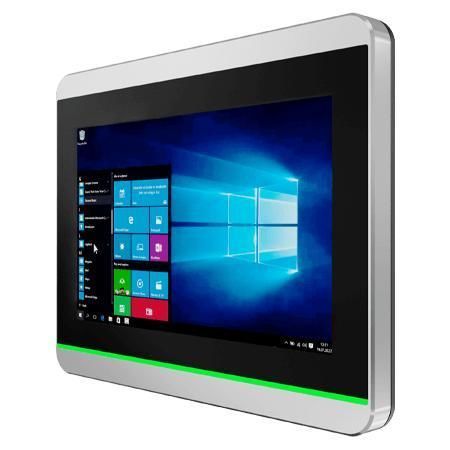

Multi-touch screen panel PC W07IE3S-PCT1AC-POE

PCAP capacitive touch screen7"1024 x 600

Overview
Winmate W07IE3S-PCT1AC-POE is a 7-inch S Series HMI panel PC powered by an Intel® Celeron® Elkhart Lake N6211 processor, designed for machine control, factory automation and operator HMI applications. It integrates a 7" 1024 x 600 projected-capacitive multi-touch display, fanless low-power design, dual 2.5 Gigabit Ethernet with an optional PoE PD port, front IP65 protection, built-in RGB LED status light bar and optional 2 MP front camera and HF RFID reader. The S Series offers a slim true-flat profile for easy integration in control panels and room terminals.

Key Features

• 7" 1024 x 600 panel with projected-capacitive (P-CAP) 4-point multi-touch
• Intel® Celeron® Elkhart Lake N6211 processor (up to 3.0 GHz)
• Fanless cooling and ultra-low power consumption
• Dual 2.5 Gigabit Ethernet (one port optionally PoE PD, IEEE 802.3at, 25 W)
• Built-in RGB LED status light bar (programmable)
• Front-side IP65 sealing for dust and splash protection
• Optional 2 MP front camera and HF RFID/NFC reader (13.56 MHz)

Product highlights and functional overview

• Power over Ethernet (PoE) support enables data and power over a single cable for simplified installation and centralized power management.
• Slim true-flat housing reduces installation depth and simplifies cleaning and maintenance in industrial and building automation installations.
• P-Cap touch with glass cover lens gives scratch resistance and smooth multi-touch operation for operator interfaces.
• RGB LED light bar provides remote process-status indication while keeping the display off to save energy; light modes are programmable.
• Optional HF RFID/NFC supports secure operator authentication and access control integration.
• Front IP65 protection ensures reliable operation in dusty or splash-prone environments.

Certifications

• CE
• FCC

Technical specifications

• Display: 7.0 inches, 1024 x 600, 320 nits, 1000:1 contrast, active area 153.6 x 90 mm, viewing angles 75/75/75/70
• Touch / Glass: Projected Capacitive Multi Touch Screen, glass cover
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB default; optional 8 GB or 16 GB
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB
• Ethernet: 2 x Intel® 2.5 Giga LAN RJ45 (one port PoE PD option, IEEE 802.3at, 25 W)
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Windows 10 IoT Enterprise 64-bit, Linux Ubuntu 22.04 (optional)
• Wireless: WLAN and Bluetooth support (optional)
• RFID: HF RFID reader 13.56 MHz (optional)
• Light Bar: Built-in RGB LED status light bar on both sides
• Dimensions: 189.4 x 145.4 x 39.8 mm; Cut-out: 175.5 x 131.5 mm; Weight: 1.0 kg
• Mounting: Wall mount default; VESA mount optional
• Enclosure: Metal housing; Cooling: Fanless design
• Operating humidity: 10% to 90% RH non-condensing; Operating temperature: 0°C to 50°C; Storage: -10°C to 60°C
• IP rating: Front IP65
• IO ports: 2 x USB 3.2 Gen1 Type-A; 1 x RS232/422/485 (default RS232); 2 x 2.5 Giga LAN; 1 x Speaker; Expansion: M.2 2242 B-key, M.2 2230 E-key
• Power input: 1 x 12V DC via 3-pin terminal block; Adapter: 12V 50W; PoE PD IEEE 802.3at (25 W)
• Accessories included: 100~240V AC to DC adapter, power cord, terminal-block adapter cable, open-wire cable with terminal block connector, VESA screws; Optional accessories: VESA desk stand, front-side wall mount kit, VESA bracket kit
