Multitouch screen panel PC W07IP3S-PCT1AC-POE

PCAP capacitive touch screen7"1024 x 600

Overview

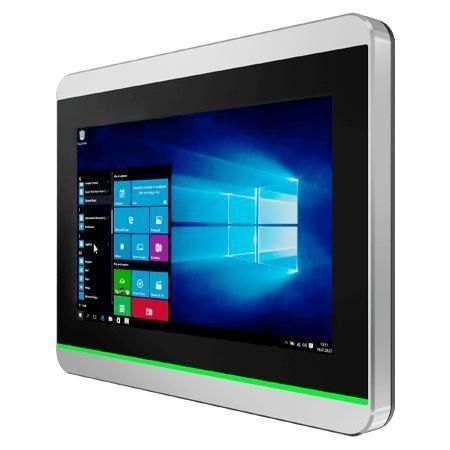

The Winmate W07IP3S-PCT1AC-POE is a 7" S-series HMI Panel PC powered by an Intel® Pentium® N4200 (Apollo Lake). It is engineered for machine control, factory automation and operator HMI stations where compact size, fanless operation and front IP65 protection are required. Configurations include PoE PD support, RGB status light bar, optional HF RFID and optional front camera.

Key Features

• 7" 1024 x 600 projected capacitive (PCAP) multi-touch display
• Intel® Pentium® N4200 processor (1.1 GHz up to 2.5 GHz)
• Fanless design for silent operation and low power consumption
• Dual Intel® Ethernet (one port optional with PoE PD, IEEE 802.3at up to 25 W)
• Built-in RGB LED status light bar (programmable)
• Front IP65 protection, overall IP22
• Optional 2 MP front camera and HF RFID 13.56 MHz reader

Product Highlights / Overview Details
PoE PD simplifies installation by delivering data and power over a single cable, enabling centralized power management for distributed HMI installations. The slim S-series housing (about 35% thinner than traditional panel PCs) features a true flat front for easy cleaning. The PCAP glass is scratch resistant and supports 4-point multi-touch. The RGB light bar provides visible status indication at a distance and HF RFID supports limited access control and operator identification.

System Specification

• Processor: Intel® Pentium® N4200 (1.1 GHz, burst up to 2.5 GHz)
• Memory: 4 GB DDR3L default (8 GB optional)
• Storage: 128 GB SSD default; optional 256/512 GB, 1 TB; 1 x M.2 2242 B-key (SATA III)
• Ethernet controller: 2 x Intel® Ethernet Controller (I210 family / variations include 2.5 Gbps)
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) optional; Linux distributions optional
• WLAN/Bluetooth: optional via M.2 2230 E-key

Display

• Size: 7.0 inches
• Touch/Glass: Projected capacitive multi-touch (PCAP), 4-point
• Resolution: 1024 x 600
• Panel brightness: 320 nits (alternative summaries list higher values)
• Contrast ratio: listed 1000:1 (spec summaries may vary)
• View angles: 75/75/75/70
• Active area: 153.6 x 90 mm

Mechanical

• Dimensions: 189.4 x 145.4 x 39.8 mm
• Cut-out: 175.5 x 131.5 mm
• Weight: approx. 1.0 kg
• Mounting: wall mount default; VESA mount optional
• Enclosure: metal housing

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0 °C to 50 °C
• Storage temperature: -10 °C to 60 °C (alternate sources list -20 °C)
• IP rating: front IP65, overall IP22

Certification

• CE
• FCC

I/O Ports & Expansion

• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 2 x RJ45 (2.5 Giga in some variants); one port optional PoE PD (IEEE 802.3at, 25 W)
• Audio: 1 x speaker
• Video: HDMI 1.4 optional
• Expansion: 1 x M.2 2242 B-key (SSD), 1 x M.2 2230 E-key (Wi‑Fi)
• Power input: 1 x 12V DC via 3-pin terminal block

Power

• Power rating: 12V DC standard; optional 9–36V configurations
• Adapter: 12V 50W adapter listed
• PoE: PoE PD follows IEEE 802.3at (up to 25 W)

Accessories

• Included/available: 100–240V AC to DC adapter, power cord, terminal block adapters, open-wire cable, VESA screws
• Optional: VESA desk stand, front side wall mount kit, VESA bracket kit

Technical specifications

• Model: W07IP3S-PCT1AC-POE
• Brand: Winmate
• Processor: Intel® Pentium® N4200 (up to 2.5 GHz)
• Memory: 4 GB DDR3L default (8 GB optional)
• Storage: 128 GB SSD default; up to 1 TB optional (M.2 2242)
• Display: 7.0" PCAP multi-touch, 1024 x 600
• Ethernet: Dual Intel® Ethernet (one optional PoE PD, IEEE 802.3at 25 W)
• Front protection: IP65
• Enclosure: metal housing, fanless design
• Dimensions: 189.4 x 145.4 x 39.8 mm; Weight: ~1.0 kg
• Mounting: wall mount default; VESA optional
• Security: TPM 2.0
• Certifications: CE, FCC
