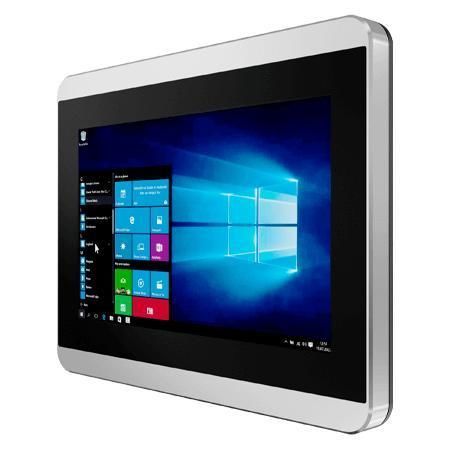

Multitouch screen panel PC W07IE3S-PCO1-POE

PCAP capacitive touch screen1000 nits7"

Overview
Winmate W07IE3S-PCO1-POE is a 7-inch HMI panel PC powered by Intel® Celeron® N6211 (Elkhart Lake) for machine control, factory automation and operator HMI. Fanless, ultra-low power design with PoE PD support and front IP65 sealing suitable for access control, room booking and industrial embedded applications.

Key Features

• 7-inch 1024 x 600 1000 nits panel with projected capacitive 4-point multi-touch
• Intel® Celeron® N6211 processor (up to 3.0 GHz)
• Fanless cooling and ultra-low power consumption
• Dual 2.5 Giga Ethernet (one port optional PoE PD, IEEE 802.3at, 25 W)
• Front panel rated IP65 for water and dust protection
• Optional 2 MP front camera and optional HF RFID reader (13.56 MHz)
• 12 V DC power input plus optional PoE power delivery

Product Highlights
PoE PD (IEEE 802.3at) enables data and power over a single cable to simplify installation and centralize power management. The true-flat front facilitates cleaning and maintenance. P-Cap multi-touch provides responsive 4-point touch and scratch-resistant glass. Front IP65 sealing increases suitability for industrial and public environments.

Certifications
CE and FCC certified.

Technical specifications

• Display: 7.0 inches, 1024 x 600, 1000 nits, contrast 700:1, active area 153.6 x 90 mm, viewing angles 75/75/75/70
• Touch/Glass: Projected Capacitive (P-Cap), 4-point multi-touch, glass cover lens
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB default; optional 8 GB, 16 GB
• Storage: 128 GB SSD default; optional 256/512 GB, 1 TB, 2 TB
• Ethernet: 2 x Intel® 2.5 Giga LAN RJ45 (one port optionally PoE PD, IEEE 802.3at, 25 W)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise, Linux Ubuntu 22.04
• Wireless: optional WLAN / Bluetooth
• RFID: HF 13.56 MHz optional
• Dimensions: 189.4 x 145.4 x 39.8 mm; Cut-out: 175.5 x 131.5 mm; Weight: 1.0 kg
• Mounting: wall mount default; VESA optional
• Enclosure: metal housing; Cooling: fanless
• Operating: 0°C to 50°C, 10% to 90% RH non-condensing; Storage: -10°C to 60°C
• IP rating: Front IP65
• IO: 2 x USB 3.2 Gen1 Type-A; 1 x RS232/422/485 (default RS232); 2 x 2.5 Giga LAN RJ45; 1 x Speaker
• Expansion: 1 x M.2 2242 B-key (SATA III SSD); 1 x M.2 2230 E-key (Wi‑Fi)
• Power input: 1 x 12 V DC (3-pin terminal); Adapter: 12 V 50 W accessory; PoE: PD IEEE 802.3at (25 W)
• Accessories: AC adapter, power cord, terminal block adapters, VESA screws; optional VESA desk stand, front-side wall mount kit
