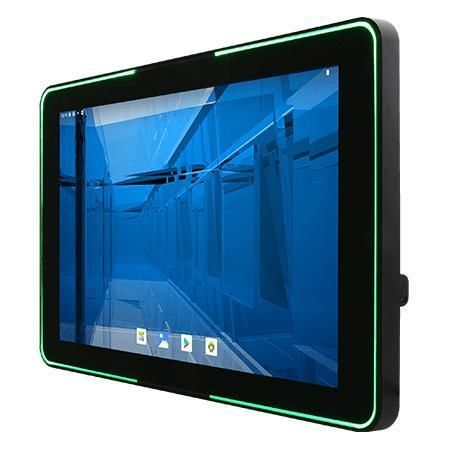

Multitouch screen panel PC W10MG3S-PCH2LB-PoE

multi-touch screentouch screencapacitive touch screen

Overview
Winmate W10MG3S-PCH2LB-PoE is a 10.1" S-Series HMI Panel PC powered by an ARM SoC (2 x A78 2.0GHz + 4 x A55 2.0GHz) for machine control, factory automation and operator HMI tasks. It supports Power over Ethernet (PoE) to combine data and power over one cable, includes an all-around RGB LED status light bar and an optional HF RFID reader for secure access. The front panel is IP65 rated and the unit features a slim, flat-surface design for easy cleaning.

Key Features

• 10.1" 1280 x 800 P-CAP multi-touch display
• ARM processor: 2 x A78 2.0GHz + 4 x A55 2.0GHz
• PoE PD support (IEEE 802.3at, 25 W)
• Built-in all-around RGB LED status light bar
• Optional HF RFID Reader (13.56 MHz)
• Slim, flat front suitable for access control and room booking terminals
• Supports Android 13 or Linux distributions (Yocto/Ubuntu)

Certifications

• Front IP65
• MIL-STD-810H (shock & vibration)
• FCC
• CE

Product Highlights

• All-in-One Connectivity with PoE: PoE reduces cabling by delivering data and power via a single Ethernet cable, simplifying installation and central power management.
• Slim, Modern Design: Approximately 35% thinner profile than typical panel PCs, flat edge-free surface for easy cleaning and aesthetic integration.
• Intuitive Multi-Touch Display: Responsive P-CAP screen with scratch-resistant glass and 4-point multi-touch.
• Intelligent Monitoring & Secure Access: 360° LED status light bar for visual process monitoring and optional HF RFID/NFC to restrict operation to authorized users.
• IP65 Front Panel: Sealed front to protect against dust and water splashes for harsher environments.

Operating Systems & Software

• Android 13 (default)
• Linux Yocto 5.15.47 with Qt 5.15 (optional)
• Linux Ubuntu 22.04 (optional)

Technical specifications

• Display: 10.1 inches; Projected Capacitive Multi Touch; 1280 x 800; 350 nits; 800:1; Active Area 216.96 x 135.6 mm
• Processor: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
• Memory: 4 GB LPDDR4
• Storage: Onboard 32 GB
• WLAN / Bluetooth: Optional
• RFID: HF 13.56 MHz (optional)
• Light Bar: Built-in all-around RGB LED
• Dimensions: 265 x 173 x 38 mm; Cut out: 250 x 159 mm; Weight: 1.2 kg
• Mounting: Panel mount; VESA mount
• Enclosure: Plastic front bezel with metal back cover
• Cooling: Fanless design
• Operating humidity: 10% to 90% RH non-condensing
• Operating temperature: 0°C to 50°C; Storage temperature: -20°C to 60°C
• Shock / Vibration: MIL-STD-810H (Methods 516.8 & 514.8)
• Certifications: CE, FCC, MIL-STD-810H; Front IP65
• IO Ports: 2 x USB 2.0 Type A; 1 x USB 2.0 Type C (OTG); 1 x RS232/422/485 (default RS232); 1 x LAN 10/100/1000 Mbps
• Video / Audio / Storage: 1 x Micro HDMI output (optional); 1 x Speaker; 1 x Micro SD card slot
• Accessories: 100~240V AC to DC adapter; power cord; terminal block adapter cable; open wire cable; VESA screws
• Power: 12V DC with terminal block (default); optional 9~36V; adapter 12V 50W; PoE PD per IEEE 802.3at (25 W)
