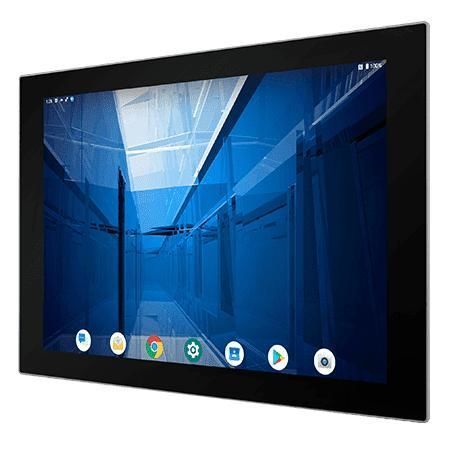

Multitouch screen panel PC R15IM3S-PCC3-POE

touch screenTFT LCDPCAP capacitive touch screen

Overview
Winmate R15IM3S-PCC3-POE is a 15-inch ARM A53 S Series HMI Panel PC designed for machine control, factory automation, and operator HMI. It features a 15.0-inch 1024 x 768 TFT LCD with Projected Capacitive Multi-Touch (PCAP), fanless cooling, ultralow power consumption, Power over Ethernet (PoE) support, optional 2MP front camera and optional HF RFID reader, and a front IP65 water- and dust-proof design. The device supports Android or Linux operating systems and targets industrial buyers, OEMs, and system integrators requiring compact, mountable HMI hardware.

Key Features

• 15.0-inch 1024 x 768 TFT LCD with Projected Capacitive Multi-Touch (PCAP)
• Fanless cooling system and ultralow power consumption
• Supports Power over Ethernet (PoE PD, IEEE 802.3at, 25 W)
• Optional 2 MP front camera
• Optional HF RFID reader (13.56 MHz)
• Slim flat design (approximately 35% thinner than traditional panel PCs)
• Front panel sealed to IP65
• Supports Android or Linux operating systems

Power over Ethernet (PoE)
The R15IM3S-PCC3-POE supports PoE (PD) following IEEE 802.3at (25 W), enabling data and power over a single cable for simplified installation and centralized power management. PoE is suitable for access control, room booking terminals and industrial automation deployments.

Stylish Design
The S-series HMI is about 35% thinner than traditional panel PCs and provides a true flat surface that is easy to clean and maintain, reducing dust accumulation on edges and simplifying installation in modern interiors.

P-Cap Touch
Projected capacitive touch uses a durable glass cover lens resistant to scratches, supports 4-point multi-touch, and enables responsive fingertip control for operator applications.

Front IP65
Front panel sealed to IP65 protects against dust ingress and water splashes, making the unit suitable for environments where accidental spills or splashes may occur.

Technical specifications

• Display: 15.0 inches; Projected Capacitive Multi Touch; Resolution 1024 x 768; Panel Brightness 300 nits; Contrast Ratio 2000:1; Active Area 304.1 x 228.1 mm; View Angles 88/88/88/88
• System: Processor ARM A53 (Quad Core 2.0 GHz); Memory 4 GB LPDDR4; Storage eMMC 32 GB onboard; OS Android 11 (default, upgradable to Android 13); Linux Yocto 5.15.47 with QT 5.15 (optional); Ubuntu Server 22.04 (optional)
• Mechanical: Dimensions 363.4 x 277.86 x 44.5 mm; Cut out 346.5 x 261 mm; Weight 3.6 kg; Mounting: Panel mount and VESA; Enclosure: Metal housing; Cooling: Fanless
• Environment: Operating Humidity 10%–90% RH non-condensing; Operating Temp 0°C–50°C; Storage Temp -20°C–60°C; Shock MIL-STD-810H Method 516.8 Procedure I; Vibration MIL-STD-810H Method 514.8 Procedure I; Front IP65
• Certification: CE, FCC
• I/O: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG; 1 x RS232/422/485 (default RS232); 1 x LAN 10/100/1000 Mbps; 1 x Micro HDMI output (optional); 2 x Speakers; 1 x Micro SD slot (max 32 GB)
• Power: 12V DC via terminal block (default); optional 9~36V input; Adapter 12V 50W; PoE PD IEEE 802.3at (25 W)
• Camera: Front 2 MP (optional)
• Accessories: 100~240V AC to DC adapter, power cord, terminal block to 2.5Ø female adapter cable, open wire cable with terminal block connector, VESA screws
