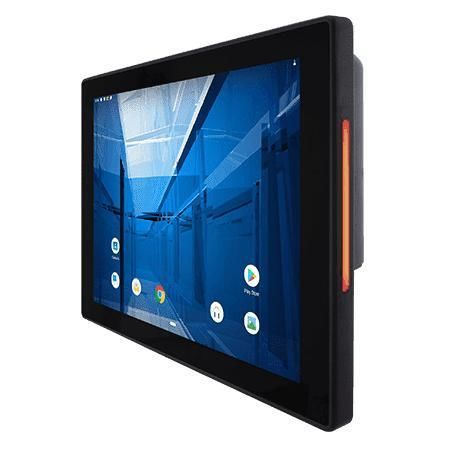

Multitouch screen panel PC R12IM3S-PCM2AC-POE

TFT LCDPCAP capacitive touch screen12.1"

Overview
Winmate R12IM3S-PCM2AC-POE is a 12.1" S-series HMI Panel PC with an ARM A53 processor, designed for machine control, factory automation and operator HMI applications. It features a slim metal enclosure with front IP65 protection, fanless cooling, low power consumption, built-in RGB LED light bar and optional HF RFID and PoE support for simplified installations.

Key Features

• 12.1" 1024 x 768 TFT LCD with Projected Capacitive Multi-Touch (PCAP)
• Fanless cooling and ultralow power consumption
• Support for Power over Ethernet (PoE, PD) IEEE 802.3at (25 W)
• Optional HF RFID reader (13.56 MHz)
• Built-in RGB LED light bar (status indication)
• Front IP65 water and dust protection
• Support for Android (default) or Linux (optional)

Product Highlights
Power over Ethernet: PoE delivers data and power over a single cable to simplify wiring and enable centralized power management, suitable for access control and automation deployments.

Stylish, Slim Design
The S-series panel is approx. 35% thinner than traditional panel PCs, with a true flat front surface for easy cleaning and an industrial aesthetic for modern interiors and control rooms.

P-Cap Touch
Projected capacitive multi-touch glass provides scratch resistance and supports intuitive multi-touch gestures (4-point multi-touch supported).

LED Light Bar & HF RFID/NFC
Programmable RGB LED light bar (four colors) indicates machine or process status at a distance. Optional HF RFID/NFC (13.56 MHz) enables basic access control and operator authentication.

Ingress Protection
Front panel sealed to IP65 to protect against dust ingress and water splashes, suitable for industrial environments.

Technical specifications

• Display Size: 12.1 inches
• Touch / Glass: Projected Capacitive Multi-Touch Screen
• Resolution: 1024 x 768
• Panel Brightness: 500 nits
• Contrast Ratio: 1000:1
• Viewing Angles: 89/89/89/89
• Active Area: 245.76 x 184.32 mm
• Processor: ARM A53 (Quad Core 2.0 GHz)
• Memory: 4 GB LPDDR4
• Storage: 32 GB eMMC onboard
• Operating System: Android 11 (default, upgradable to Android 13); Linux Yocto 5.15.47 with QT 5.15 (optional); Linux Ubuntu Server 22.04 (optional)
• WLAN / Bluetooth: optional
• RFID: HF RFID Reader 13.56 MHz (optional)
• Light Bar: Built-in RGB LED status light bar (both sides)
• Dimensions (W x H x D): 296 x 227 x 46 mm
• Cut out: 282 x 207 mm
• Weight: 3.4 kg
• Mounting: VESA mount / panel mount
• Enclosure: metal housing
• Cooling System: fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Shock: MIL-STD-810H Method 516.8 Procedure I
• Vibration: MIL-STD-810H Method 514.8 Procedure I
• IP Rating: Front IP65
• Certifications: CE, FCC
• USB: 2 x USB 2.0 Type-A; 1 x Micro USB 2.0 OTG
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x 10/100/1000 Mbps
• Video: 1 x Micro HDMI output (optional)
• Audio: 2 x speakers
• SD Card Slot: 1 x Micro SD (max 32 GB)
• Power Rating: 12 V DC via terminal block (default); optional 9–36 V
• Adapter: 12 V 50 W
• PoE: PoE (PD) IEEE 802.3at (25 W)
• Accessories: 100~240 V AC to DC adapter; power cord; terminal block to 2.5Ø female adapter cable; open wire cable with terminal block connector; VESA screws
