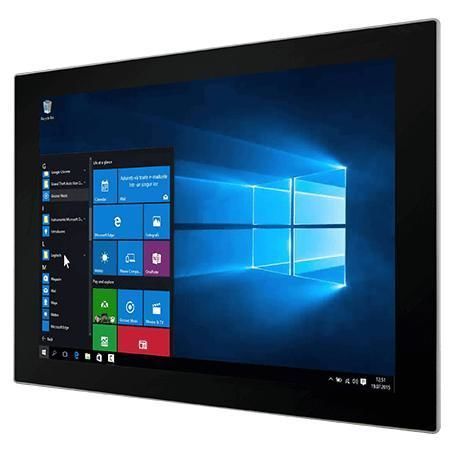

Multitouch screen panel PC R15IP3S-PCC3-POE

touch screenPCAP capacitive touch screen15"

Overview
Winmate R15IP3S-PCC3-POE is a 15-inch S-Series HMI Panel PC engineered for machine control, factory automation and operator interfaces. It integrates an Intel® Pentium® N4200 processor, fanless cooling, dual Intel Ethernet controllers with optional PoE, and a front-side IP65 protection suitable for industrial and embedded applications.

Key Features

• 15" 1024 x 768 PCAP multi-touch display (4-point)
• Intel® Pentium® N4200 (Apollo Lake)
• Fanless design for low power and reliable operation
• Dual Intel® Ethernet controllers (one port PoE PD, IEEE 802.3at, 25 W optional)
• Front IP65 protection (water and dust resistant)
• Optional 2 MP front camera and HF RFID reader (13.56 MHz)
• Supports PoE for simplified cabling and centralized power

Display

• Size: 15.0 inches
• Touch/Glass: Projected Capacitive Multi Touch (P-Cap)
• Resolution: 1024 x 768
• Brightness: 300 nits
• Contrast Ratio: 2000:1
• Active Area: 304.1 x 228.1 mm

System Specification

• CPU: Intel® Pentium® N4200 1.1 GHz (burst up to 2.5 GHz)
• Memory: 4 GB DDR3L (default), upgradable to 8 GB
• Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB (M.2 2242)
• Ethernet: 2 x Intel® controllers (2 x 2.5G/ Gigabit), one port optional PoE
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu options
• Wireless: WLAN/Bluetooth optional via M.2 2230 E-key

Mechanical

• Dimensions: 363.4 x 277.86 x 45.2 mm
• Cut out: 346.5 x 261 mm
• Weight: 3.5 kg
• Mounting: Panel/wall mount (VESA optional)
• Enclosure: Metal housing

Environment

• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: 0 °C to 50 °C
• Storage temperature: -10 °C to 60 °C
• Front IP rating: IP65

Certification

• CE
• FCC

IO Ports

• USB: 2 x USB 3.2 Gen2x1 Type-A
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 2 x RJ45 (2.5G/1G); one port optional PoE PD (IEEE 802.3at, 25 W)
• Video: HDMI 1.4 (optional)
• Audio: 2 x speakers
• Expansion: M.2 2242 B-key (SSD), M.2 2230 E-key (Wi‑Fi)
• Power input: 12 V DC, 3-pin terminal block

Accessory

• Included: 100–240 V AC to DC adapter, power cord, terminal block adapters, VESA screws, driver CD & manual (depending on package)
• Optional: VESA desk stand, front-side wall mount kit

Power

• Power rating: 12 V DC (variants may support 9–36 V)
• Adapter: 12 V 50 W recommended
• PoE: PoE PD IEEE 802.3at (25 W) supported

Technical specifications (summary)

• Model: R15IP3S-PCC3-POE
• Brand: Winmate
• Display: 15" P-CAP, 1024 x 768, 300 nits
• CPU: Intel® Pentium® N4200
• Memory/Storage: 4 GB / 128 GB SSD default; options to 8 GB / 1 TB
• Ethernet: Dual Intel® controllers, PoE PD optional
• Front protection: IP65
• Operating temp: 0–50 °C
• Mounting: Panel/wall (VESA optional)
