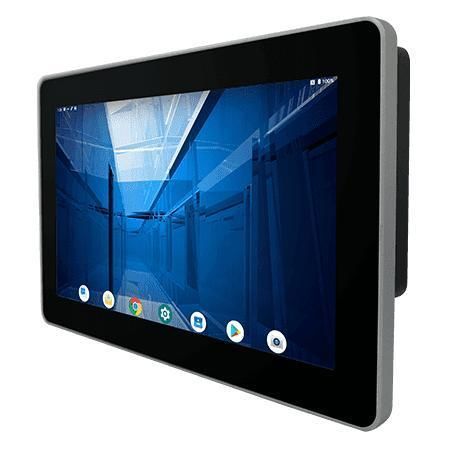

PCAP capacitive touch screen panel PC W10IM3S-PCH2-POE

touch screenmultitouch screen1000 nits

Product overview
Winmate W10IM3S-PCH2-POE is a 10.1-inch ARM A53 S Series HMI Panel PC designed for machine control, factory automation, and operator HMI. It is intended for industrial buyers, OEMs, and system integrators who need reliable hardware for rugged, embedded, or mission-critical environments where performance, durability, and long lifecycle availability matter. Best suited for machine control, factory automation and operator HMI applications where stable hardware integration and dependable field operation are required.

Key features

• 10.1” 1280 x 800 resolution with Projected Capacitive Multi-Touch (P-CAP)
• Fanless cooling system and ultralow power consumption
• Support for Power over Ethernet (PoE)
• Optional 2MP front camera
• Optional HF (13.56 MHz) RFID reader
• Stylish, slim design suitable for room booking, access control and room information applications
• Front IP65 water and dust proof
• Support for Android or Linux operating systems

Highlights / Overview

• Power over Ethernet: Data and power via a single cable simplifies hardware installation and enables centralized power management, useful for access control and industrial automation scenarios.
• Stylish design: S-series HMI is significantly thinner than traditional panel PCs with a true flat surface for easy cleaning and modern aesthetics.
• P-Cap Touch: Glass cover lens with projected capacitive multi-touch supporting multi-touch gestures and resistant to scratches.
• Front IP65: Front panel sealed to protect against dust and water splashes.

Certifications

• CE
• FCC

Technical specifications

• Display — Size: 10.1 inches
• Display — Touch / Glass: Projected Capacitive Multi Touch Screen
• Display — Resolution: 1280 x 800
• Display — Panel Brightness: 350 nits (1000 nits optional)
• Display — Contrast Ratio: 800:1
• Display — View Angles: 85, 85, 85, 85
• Display — Active Area: 216.96 x 135.6 mm
• System — Processor: ARM A53 (Quad Core 2.0 GHz)
• System — Memory: 4 GB LPDDR4
• System — Storage: eMMC onboard 32 GB
• System — Operating System: Android 11 (default, upgradeable to Android 13); Linux Yocto 5.15.47 with Qt 5.15 (optional); Linux Ubuntu Server 22.04 (optional)
• Connectivity — WLAN: Support (optional)
• Connectivity — Bluetooth: Support (optional)
• RFID — HF RFID Reader: 13.56 MHz (optional)
• Mechanical — Dimension: 264 x 173 x 36 mm
• Mechanical — Cut out: 250 x 159 mm
• Mechanical — Weight: 1.2 kg
• Mechanical — Mounting: Panel mount; VESA mount
• Mechanical — Enclosure: Plastic front bezel with metal back cover
• Cooling System: Fanless design
• Environment — Operating Humidity: 10% to 90% RH, non-condensing
• Environment — Operating Temperature: 0°C to 50°C
• Environment — Storage Temperature: -20°C to 60°C
• Reliability — Shock: MIL-STD-810H Method 516.8 Procedure I
• Reliability — Vibration: MIL-STD-810H Method 514.8 Procedure I
• Protection — IP rating: Front IP65
• Certification: CE, FCC
• IO Ports — USB: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG
• IO Ports — Serial: 1 x RS232/422/485 (default RS232)
• IO Ports — LAN: 1 x LAN 10/100/1000 Mbps
• IO Ports — Video: 1 x Micro HDMI output (optional)
• IO Ports — Audio: 1 x speaker
• IO Ports — SD Card Slot: 1 x Micro SD card slot (max 32 GB)
• Power — Power Rating: 12 V DC with terminal block (default); 9–36 V (optional)
• Power — Adapter: 12 V 50 W
• Power — PoE: PoE (PD) follows IEEE 802.3at (25 W)
• Camera — Front Camera: 2 MP (optional)
• Accessories included / available: 100–240 V AC to DC adapter; power cord; terminal block to 2.5Ø female adapter cable; open wire cable with terminal block connector; VESA screws
