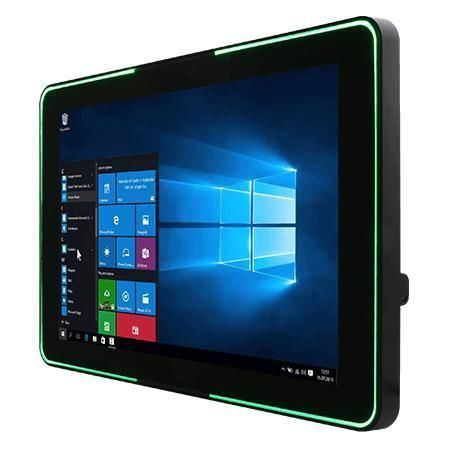

Touch screen panel PC W10IE3S-PCH2LB

multi-touch screenPCAP capacitive touch screen10.1"

Overview
Winmate W10IE3S-PCH2LB is a 10.1-inch Intel® Celeron® N6211 S-Series HMI Panel PC for machine control, factory automation and operator HMI. It integrates a 10.1-inch 1280x800 PCAP multi-touch display, fanless Intel® Celeron® Elkhart Lake N6211 processor for ultra-low power consumption, dual 2.5 Giga Ethernet, an all-around RGB LED status light bar, front IP65 sealing, and optional 2 MP front camera and HF RFID reader. The device is aimed at industrial OEMs and system integrators requiring reliable, compact HMI hardware with long lifecycle availability.

Key features

• 10.1-inch 1280x800 350 nits panel with PCAP multi-touch
• Intel® Celeron® Elkhart Lake N6211 processor
• Fanless cooling and ultra-low power consumption
• Dual 2.5 Giga Ethernet ports
• Built-in all-around RGB LED status light bar
• Front IP65 water and dust protection
• Optional 2 MP front camera
• Optional HF RFID reader (13.56 MHz)
• Slim design for room booking, access control and HMI integration

Product highlights / features explained

• Power over Ethernet (PoE) support reduces cabling by delivering data and power over a single cable, simplifying installations and power management.
• Slim, true-flat front surface (35% thinner than traditional S-series Panel PCs) eases cleaning and offers modern aesthetics for control rooms and kiosks.
• Projected capacitive touch glass supports 4-point multi-touch, scratch resistance and reliable finger input for operator interfaces.
• Built-in RGB LED light bar provides remote visual status with programmable colors (red, green, blue, orange); compatible with HF RFID/NFC for limited access control functions.
• Front IP65 sealing protects the display and front electronics from dust and splashes in industrial environments.

Technical specifications

• Display — Size: 10.1 inches; Touch/Glass: Projected Capacitive Multi Touch Screen; Resolution: 1280 x 800; Brightness: 350 nits; Contrast: 800:1; Viewing angles: 85/85/85/85; Active area: 216.96 x 135.6 mm
• System — Processor: Intel® Celeron® N6211 (up to 3.0 GHz); Memory: 4 GB default, optional 8 GB/16 GB; Storage: 128 GB SSD default, optional 256/512 GB, 1 TB, 2 TB; Ethernet: 2 x Intel® Ethernet Controller
• Security & OS — TPM 2.0; OS options: Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Windows 10 IoT Enterprise 64-bit, Linux Ubuntu 22.04 (optional)
• Connectivity — LAN: 2 x 2.5 Giga LAN RJ45; USB: 2 x USB 3.2 Gen1 Type-A; Serial: 1 x RS232/422/485 (default RS232); Audio: 1 x Speaker; Expansion: M.2 2242 B-key (SATA III SSD), M.2 2230 E-key (Wi‑Fi)
• Mechanical — Dimensions: 265 x 173 x 38 mm; Cut out: 250 x 159 mm; Weight: 1.2 kg; Mounting: wall mount default, VESA optional; Enclosure: metal
• Environment — Operating humidity: 10% to 90% RH non-condensing; Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C; Front IP rating: IP65
• Power & Certification — Power input: 12V DC via 3-pin terminal block; Adapter: 12V 50W; Certifications: CE, FCC
• Accessories — Included: 100~240V AC to DC adapter, power cord, terminal block adapter cables, VESA screws; Optional: VESA desk stand, front side wall mount kit, glass wall mount kits, VESA bracket kits
