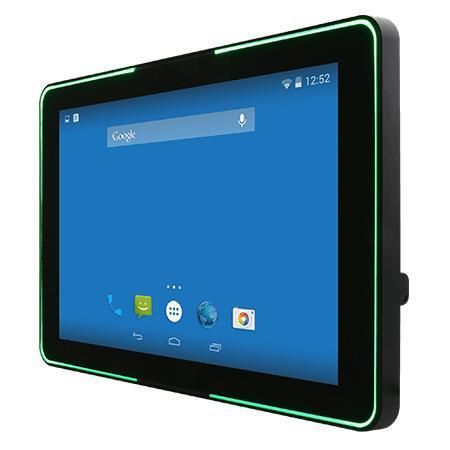

PCAP capacitive touch screen panel PC W10FA3S-PCH2LB

multi-touch screentouch screen10.1"

Overview
The W10FA3S-PCH2LB is a 10.1-inch NXP i.MX6 S Series HMI panel PC for machine control, factory automation and operator HMI. It provides a fanless, low-power platform with long lifecycle availability and options for PoE, HF RFID and wireless expansion, aimed at industrial buyers, OEMs and system integrators.

Key features

• 10.1-inch 1280 x 800 with Projected Capacitive Multi-Touch (PCAP)
• NXP i.MX6 Dual Core 1.0 GHz (optional Quad Core)
• Fanless cooling and ultra-low power consumption
• Supports Power over Ethernet (PoE PD, IEEE 802.3at, 25 W)
• Built-in all-around RGB LED status light bar (programmable)
• Optional HF RFID Reader (13.56 MHz)
• Front panel sealed to IP65

Product highlights and descriptions

• Power over Ethernet — Data and power on a single cable simplifies installation and enables centralized power management for access control and automation deployments.
• Slim, flat design — Reduced bezel depth and a flat glass surface ease cleaning and suit modern interiors and room-information applications.
• P-Cap touch — Glass cover lens with 4-point multi-touch for accurate finger control and improved durability.
• LED light bar & HF RFID/NFC — Programmable RGB light bar for remote status indication; optional HF RFID provides limited access control and personnel authentication.
• Front IP65 — Sealed front against dust and water splashes, suitable for typical industrial and public-facing installations.

Certifications

• CE
• FCC

Specifications

• Display: 10.1 inches; Projected Capacitive Multi Touch; 1280 x 800; 350 nits (1000 nits optional); 800:1 contrast; active area 216.96 x 135.6 mm
• System: Processor NXP i.MX6 Dual Core 1.0 GHz (optional quad-core); Memory 1 GB (default) / 2 GB (optional); Storage eMMC 16 GB (default) / 32 GB (optional); OS options: Linux Ubuntu 18.04, Android 6.0, Debian 7.0, Linux 4.1.15 QT 5.5; optional WLAN/Bluetooth; optional HF RFID 13.56 MHz
• Mechanical: Dimensions 265 x 173 x 38 mm; cut out 250 x 159 mm; weight 1.2 kg; metal enclosure; wall mount (default), VESA optional; fanless
• Environment: Operating humidity 10%–90% RH non-condensing; operating temperature 0°C–50°C; storage -10°C–60°C
• IO Ports: 1 x Mini USB console, 1 x USB OTG, 1 x USB 2.0 Type-A, 1 x RS232/422/485 (default RS232), 1 x RJ45 with PoE (PD, IEEE 802.3at), 1 x Micro HDMI (optional), 1 x speaker, 1 x Micro SD, 1 x mPCIe slot, 1 x CANBUS D-sub9, 1 x 12V DC 2-pin terminal block
• Accessories (included): 100~240V AC to DC adapter, power cord, terminal block adapter cables, VESA screws, driver CD & manual
• Optional accessories: VESA desk stand, front side wall mount kit, glass wall mount kit, VESA bracket kits
• Power: 12V DC adapter (12V 50W); PoE PD per IEEE 802.3at (up to 25 W)
