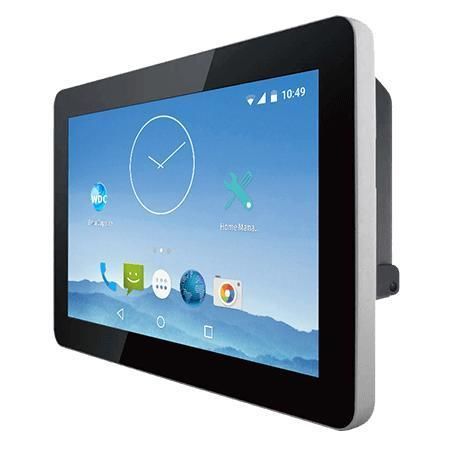

Multitouch screen panel PC R12FA3S-PCM2-POE

touch screenPCAP capacitive touch screen12.1"

Overview
Winmate R12FA3S-PCM2-POE is a 12.1-inch NXP i.MX6 S-series HMI panel PC for machine control, factory automation and operator HMI. It features a fanless design, ultra-low power consumption and Power over Ethernet (PoE) support with a front panel rated IP65. Optional 2MP front camera and HF RFID reader expand integration possibilities.

Key Features

• 12.1-inch 1024 x 768 display with Projected Capacitive Multi-Touch (4-point)
• Fanless cooling and ultralow power consumption
• PoE PD support (IEEE 802.3at, up to 25 W)
• Optional 2MP front camera
• Optional HF RFID reader (13.56 MHz)
• Front panel IP65 for water and dust protection
• Slim flat design for easy cleaning and integration

Product Highlights
PoE combines data and power on a single cable to reduce cabling and enable centralized power management, making the unit suitable for access control, information terminals and distributed automation systems.

Design & Usability
Slim metal enclosure with P-Cap glass provides scratch resistance and reliable 4-point touch operation for finger input. Flat front surface improves hygiene and simplifies maintenance in industrial and public environments.

Certifications
CE, FCC

Technical Specifications

• Model: R12FA3S-PCM2-POE
• Processor: NXP i.MX6 Dual Core 1.0 GHz
• Memory: 1 GB (default), 2 GB (optional)
• Storage: eMMC 16 GB (default), 32 GB (optional)
• Display: 12.1-inch, 1024 x 768, 500 nits, 1000:1 contrast
• Touch: Projected Capacitive Multi-Touch (4-point)
• Dimensions: 296 x 227 x 46 mm; Cut-out: 282 x 207 mm
• Weight: 3.0 kg
• Mounting: Panel/wall mount (default); VESA optional
• Enclosure: Metal housing; Cooling: Fanless
• Environment: 0°C to 50°C operating; 10%–90% RH non-condensing
• IP: Front IP65
• IO: 1x Mini USB console, 1x USB OTG, 1x USB2.0 Type-A, 1x RS232/422/485, 1x RJ45 LAN with PoE PD, 1x Micro HDMI (optional), speaker, Micro SD, mPCIe, CANBUS D-sub9
• Power: 12V DC input; adapter 12V 50W; PoE PD IEEE 802.3at (25 W)
• Accessories: AC/DC adapter, power cord, terminal block adapters, VESA screws, driver CD & manual

Typical Applications
Operator HMIs, machine control panels, access control terminals, room booking and information kiosks, and embedded automation systems requiring PoE and front IP65 protection.
