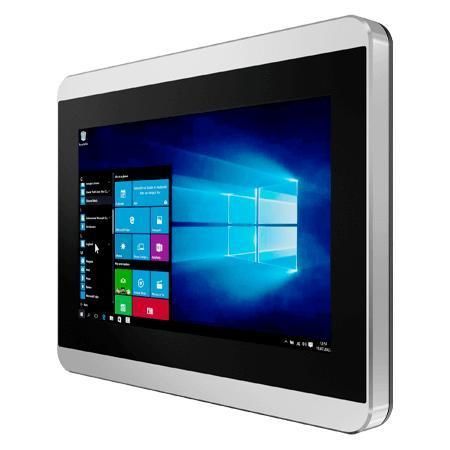

Multitouch screen panel PC W07IP3S-PCT1-POE

PCAP capacitive touch screen7"1024 x 600

Overview
Winmate W07IP3S-PCT1-POE is a 7-inch S-series HMI Panel PC powered by Intel® Pentium® N4200 (Apollo Lake). Designed for machine control, factory automation and operator HMI, it features a projected-capacitive multi-touch 7" display, fanless cooling, optional PoE PD support and an IP65-rated front. It is intended for industrial buyers, OEMs and system integrators requiring a compact, low-power HMI with long-term availability.

Key Features

• 7" 1024 x 600 PCAP multi-touch display
• Intel® Pentium® N4200 processor (1.1 GHz, up to 2.5 GHz)
• Fanless design for low power and silent operation
• Dual Ethernet controllers (Intel I210 family / 2.5G capability), one port optionally PoE PD
• Front protection IP65; enclosure rating IP22
• Optional 2 MP front camera and HF RFID reader (13.56 MHz)
• Support for Power over Ethernet (PoE PD IEEE 802.3at, 25 W)

Certifications

• Front IP65
• CE
• FCC

Product Highlights / Details

• Power over Ethernet: combines data and power in a single cable to simplify installation and enable centralized power management for access control and automation deployments.
• S-series form factor: thinner profile and true flat front for easier integration and cleaning in shared spaces such as room booking terminals or access panels.
• P-Cap Touch: scratch-resistant glass cover supporting 4-point multi-touch for reliable touch control.
• Front protection: IP65-rated front protects against dust and water splash for use in harsher environments.

Technical specifications

• Model: W07IP3S-PCT1-POE
• Display size: 7.0 inches; Resolution: 1024 x 600; Touch: Projected Capacitive Multi Touch
• Panel brightness: 320 nits (references vary)
• Contrast ratio: 1000:1 (references vary)
• Active area: 153.6 x 90 mm; View angles: 75,75,75,70
• Processor: Intel® Pentium® N4200 (1.1 GHz, burst up to 2.5 GHz)
• Memory: 4 GB DDR3L (default); 8 GB optional
• Storage: 128 GB SSD (default); options: 256 GB / 512 GB / 1 TB
• Ethernet: 2 x Intel® Ethernet Controller (I210 family, 2.5G capable); one port optionally PoE PD (IEEE 802.3at, 25 W)
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise 64-bit (optional); Linux Ubuntu (optional)
• Wireless: WLAN / Bluetooth support (optional, M.2 modules)
• RFID: HF 13.56 MHz reader (optional)
• Dimensions: 189.4 x 145.4 x 39.8 mm; Cut-out: 175.5 x 131.5 mm
• Weight: ~1.0 kg; Mounting: wall mount (default); VESA optional
• Enclosure: metal housing; Cooling: fanless
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• IP rating: Front IP65; Full enclosure indicated as IP22
• Certifications: CE, FCC
• IO: 2 x USB 3.x Type-A; 1 x RS232/422/485 (default RS232); 2 x RJ45 LAN (one with PoE PD optional); HDMI 1.4 (optional); 1 x Speaker
• Expansion: 1 x M.2 2242 B-key (SATA III SSD); 1 x M.2 2230 E-key (Wi‑Fi)
• Power input: 1 x 12 V DC, 3-pin terminal block (default); Power rating 12 V DC (9–36 V optional)
• Accessories included: 100–240 V AC to DC adapter, power cord, terminal block adapter cable, open wire cable with terminal block connector, VESA screws, driver CD & manual
