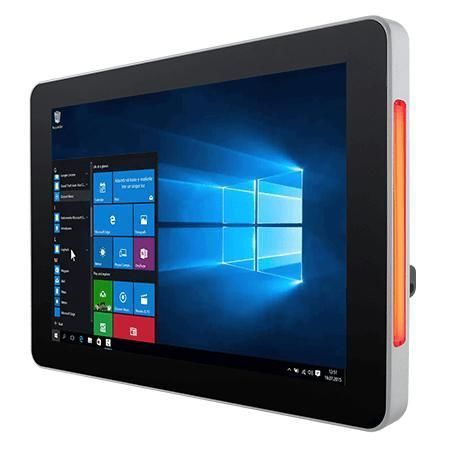

PCAP capacitive touch screen panel PC W10IE3S-PCH2AC-POE

touch screenmultitouch screen10.1"

Product overview
Winmate W10IE3S-PCH2AC-POE is a 10.1-inch S Series HMI panel PC powered by Intel® Celeron® N6211 (Elkhart Lake). Designed for machine control, factory automation and operator HMI applications that require a slim, fanless industrial panel with long lifecycle availability. It integrates a PCAP multi-touch display, dual 2.5 Gigabit Ethernet with optional PoE PD, built-in RGB LED light bars, front IP65 protection, optional front camera and HF RFID reader, and multiple mounting options for flexible installation.

Key features

• 10.1-inch 1280 × 800 350 nits panel with PCAP multi-touch
• Intel® Celeron® Elkhart Lake N6211 processor (up to 3.0 GHz)
• Fanless cooling design and ultra-low power consumption
• Dual 2.5 Gigabit Ethernet (one port supports PoE PD, IEEE 802.3at, 25 W)
• Built-in RGB LED light bars on both sides for status indication
• Front IP65 (water and dust protection)
• Optional 2 MP front camera and HF RFID reader (13.56 MHz)
• Multiple mounting options: wall mount (default), optional VESA mounts and brackets

Overview details

• Power over Ethernet: PoE PD follows IEEE 802.3at (25 W), enabling data and power over a single cable to simplify installation and centralize power management.
• Slim profile: up to 35% slimmer than conventional panel PCs, with a true flat front surface for easier cleaning and maintenance.
• P-Cap touch: projected capacitive multi-touch with 4-point functionality and a scratch-resistant glass cover lens for reliable input.
• Smart monitoring & secure access: programmable RGB LED light bar for remote status monitoring and optional HF RFID/NFC for restricted access control.

Technical specifications

• Display – Size: 10.1 inches
• Display – Touch / Glass: Projected Capacitive Multi Touch Screen (P-CAP)
• Display – Resolution: 1280 x 800
• Display – Brightness: 350 nits
• Display – Contrast Ratio: 800:1
• Display – View Angles: 85/85/85/85
• Display – Active Area: 216.96 x 135.6 mm
• System – Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• System – Memory: 4 GB (default); 8 GB, 16 GB (optional)
• System – Storage: 128 GB SSD (default); optional 256 GB, 512 GB, 1 TB, 2 TB SSD
• System – Ethernet controller: 2 x Intel® Ethernet Controller
• System – Security: TPM 2.0
• System – Operating System (optional): Windows 11 IoT Enterprise (64 bit); Windows 11 Pro (64 bit); Windows 10 IoT Enterprise (64 bit); Linux Ubuntu 22.04
• System – WLAN / Bluetooth: support (optional)
• System – RFID: HF RFID Reader 13.56 MHz (optional)
• Light Bar – Built-in RGB LED status light bar on both sides
• Mechanical – Dimension: 263.48 x 172 x 35.7 mm
• Mechanical – Cut out: 250 x 159 mm
• Mechanical – Weight: 1.2 kg
• Mechanical – Mounting: Wall mount (default); VESA mount (optional)
• Mechanical – Enclosure: Metal housing
• Mechanical – Cooling System: Fanless design
• Environment – Operating Humidity: 10% to 90% RH, non-condensing
• Environment – Operating Temperature: 0°C to 50°C
• Environment – Storage Temperature: -10°C to 60°C
• Environment – IP rating: Front IP65
• Certification: CE, FCC
• IO Ports – USB: 2 x USB 3.2 Gen1x1 (Type-A)
• IO Ports – Serial Port: 1 x RS232/422/485 (default RS232)
• IO Ports – LAN: 2 x 2.5 Giga LAN RJ45 (one port with PoE PD, IEEE 802.3at, 25 W) (optional)
• IO Ports – Audio: 1 x Speaker
• IO Ports – Expansion: 1 x M.2 2242 B-key (for SATA III SSD); 1 x M.2 2230 E-key (for Wi‑Fi module)
• Power – Input: 1 x 12V DC, 3-pin terminal block
• Power – Rating: 12V DC
• Power – Adapter: 12V 50W adapter (included accessory)
• Power – PoE: PoE (PD) IEEE 802.3at (25 W)
• Accessories (included): 100~240V AC to DC adapter; power cord; terminal block to 2.5Ø female adapter cable; open wire cable with terminal block connector; VESA screws
• Optional accessories: VESA desk stand; front side wall mount kit; glass wall mount kit (right/left); VESA bracket mounting kit
