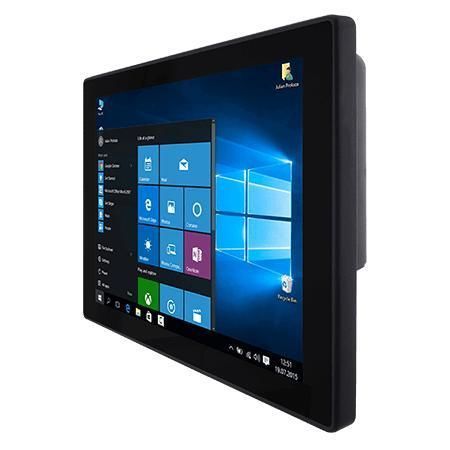

Multi-touch screen panel PC R12IE3S-PCM2-POE

touch screenPCAP capacitive touch screen12.1"

Product overview
Winmate R12IE3S-PCM2-POE is a 12.1-inch industrial HMI Panel PC powered by Intel® Celeron® N6211. Intended for machine control, factory automation and operator interfaces, it provides a 12.1" 1024 x 768 P‑Cap multi-touch display, fanless design, dual 2.5 Gbit Ethernet (one port with PoE PD), front IP65 protection and modular expansion options including optional 2 MP front camera and HF RFID reader.

Key features

• 12.1-inch 1024 x 768 500 nits P‑Cap multi-touch display
• Intel® Celeron® N6211 (Elkhart Lake)
• Fanless cooling and low power consumption
• Dual 2.5 Gigabit Ethernet (one port supports PoE PD, IEEE 802.3at, 25 W)
• Front IP65 protection
• Optional 2 MP front camera and HF RFID (13.56 MHz)
• M.2 expansion slots for SSD and Wi‑Fi module

PoE and connectivity
Supports PoE PD (IEEE 802.3at, 25 W) to deliver data and centralized power over a single cable. Dual 2.5 Gbit LAN provides higher network bandwidth for industrial applications. Expansion options include M.2 2242 B‑key for SATA SSD and M.2 2230 E‑key for Wi‑Fi modules. Standard I/O includes USB 3.2 Type‑A, serial RS232/422/485 and audio.

Design & touch
The S Series offers a slim, flat front profile for easy cleaning and maintenance. Projected capacitive glass touch ensures scratch resistance and accurate 4‑point finger operation suitable for industrial operator stations.

Front IP65 & environment
Front-side IP65 sealing protects against dust and water splashes. Operating range supports typical industrial sites: 0°C to 50°C and 10% to 90% RH (non‑condensing).

Certifications

• Front IP65
• CE
• FCC

Technical specifications

• Display
  Size: 12.1 inches
  Resolution: 1024 x 768
  Brightness: 500 nits
  Touch: Projected Capacitive multi‑touch (4‑point)
• System
  Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
  Memory: 4 GB default, up to 16 GB optional
  Storage: 128 GB SSD default, up to 2 TB optional
  Security: TPM 2.0
  OS: Windows 11/10 IoT or Linux options
• Mechanical
  Dimensions: 296 x 227 x 46 mm
  Cut out: 282 x 207 mm
  Weight: 3.0 kg
  Mounting: Wall mount (standard), VESA optional
  Enclosure: Metal housing
• Environment
  Operating temp: 0°C to 50°C
  Storage temp: -10°C to 60°C
  Operating humidity: 10% to 90% RH non‑condensing
• I/O & expansion
  USB: 2 x USB 3.2 Gen1 Type‑A
  Serial: 1 x RS232/422/485 (default RS232)
  LAN: 2 x 2.5 Gbit RJ45 (one with PoE PD, IEEE 802.3at, 25 W)
  Expansion: M.2 2242 B‑key, M.2 2230 E‑key
• Power & accessories
  Power input: 12 V DC, adapter 12 V 50 W included
  PoE: PD support IEEE 802.3at (25 W)
  Included accessories: AC‑DC adapter, power cord, terminal block adapters, VESA screws; optional VESA desk stand
