Overview

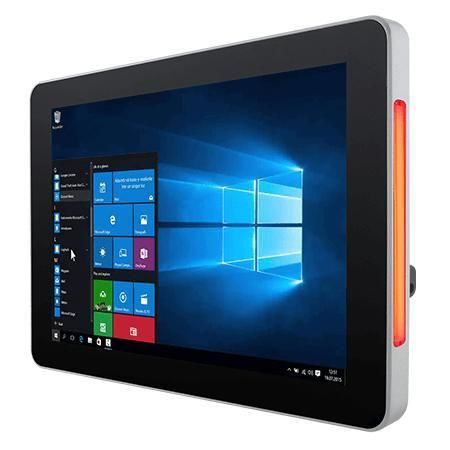

Winmate W10IP3S-PCH2AC-POE is a 10.1-inch S-series HMI Panel PC powered by the Intel Pentium N4200. It is designed for machine control, factory automation and operator HMI tasks. Key attributes include a 1280×800 projected capacitive multi-touch display, fanless cooling, dual high-speed Ethernet with PoE support, RGB LED status light bars and a front panel rated IP65 for dust and water protection.

Key Features

• 10.1-inch 1280×800 PCAP multi-touch display (4-point)
• Intel Pentium N4200 (Apollo Lake)
• Fanless cooling and low power consumption
• Dual Ethernet (one port supports PoE PD, IEEE 802.3at, 25 W)
• Built-in RGB LED status light bars on both sides
• Front panel rated IP65
• Optional 2 MP front camera and HF RFID reader (13.56 MHz)
• Multiple mounting options: wall mount default, optional VESA and desk stands

Power over Ethernet (PoE)
The device supports PoE PD (IEEE 802.3at, 25 W) to combine data and power over a single cable, simplifying installation and enabling centralized power management for access control and industrial automation.

Design
Part of the S-series HMI family, this panel PC has a slim, flat-front design that eases cleaning and integration into modern control panels and room-information interfaces.

P-Cap Touch
A scratch-resistant glass cover lens protects the display and supports reliable 4-point projected capacitive multi-touch operation with finger input.

LED Light Bar and HF RFID/NFC
Programmable RGB LED side light bars provide visual status indication at a distance. Optional HF RFID/NFC (13.56 MHz) enables limited access control and user identification functions.

Front IP65
The front panel is sealed to IP65 for protection against dust and water splashes, suitable for harsh industrial environments.

Certifications

• Front IP65
• CE
• FCC

Technical specifications

• Display
  • Size: 10.1 inches
  • Touch / Glass: Projected capacitive multi-touch (P-CAP), 4-point
  • Resolution: 1280 × 800
  • Brightness: 350 nits (1000 nits optional)
  • Contrast ratio: 800:1
  • Active area: 216.96 × 135.6 mm
• System
  • Processor: Intel Pentium N4200 1.1 GHz (up to 2.5 GHz)
  • Memory: 1 × SO-DIMM DDR3L 1600 MHz, 4 GB default; 8 GB optional
  • Storage: M.2 2242 SSD 128 GB default; 256 GB, 512 GB, 1 TB optional (SATA III)
  • Ethernet controller: 2 × Intel controllers (up to 2.5 Gbps)
  • Security: TPM 2.0
  • OS: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu optional
• Mechanical
  • Dimensions: 263.48 × 172 × 35.7 mm
  • Cut-out: 250 × 159 mm
  • Weight: ~1.2 kg
  • Enclosure: Metal housing; fanless design
• Environment
  • Operating humidity: 10%–90% RH, non-condensing
  • Operating temperature: 0 °C to 50 °C
  • Storage temperature: -10 °C to 60 °C
• IO Ports
  • USB: 2 × USB 3.2 Gen2x1 Type-A
  • Serial: 1 × RS232/422/485 (default RS232)
  • LAN: 2 × 2.5 Giga LAN RJ45 (one port PoE PD capable)
  • Video: HDMI 1.4 (optional)
  • Audio: 1 × speaker
  • Expansion: M.2 2242 B-key (SATA SSD), M.2 2230 E-key (Wi‑Fi)
  • Power input: 1 × 12 V DC, 3-pin terminal block
• Power
  • Power rating: 12 V DC (9–36 V optional)
  • Adapter: 12 V, 50 W
  • PoE: PD follows IEEE 802.3at (25 W)
• Accessories
  • Included: 100–240 V AC to DC adapter, power cord, terminal block adapter, open wire cable with terminal block, VESA screws, driver CD & manual
  • Optional: VESA desk stand, front side wall mount kit, glass wall mount kit, VESA bracket kit
