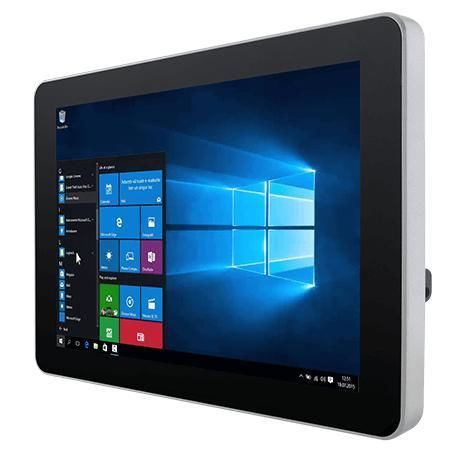

PCAP capacitive touch screen panel PC W10IP3S-PCH2-POE

multitouch screen10.1"1280 x 800

Overview
Winmate W10IP3S-PCH2-POE is a 10.1-inch HMI Panel PC for machine control, factory automation and operator interfaces. It targets industrial buyers, OEMs and system integrators who need integrated hardware with stable field operation and long lifecycle availability.

Key features

• 10.1" 1280 x 800 projected capacitive (P-Cap) multi-touch screen
• Intel® Pentium® N4200 (Apollo Lake)
• Fanless design and ultra-low power consumption
• Dual Intel Ethernet controllers (2 x 2.5 Giga LAN), PoE support (PD, IEEE 802.3at, 25 W) optional
• Front IP65 water and dust protection
• Optional 2 MP front camera and HF RFID reader (13.56 MHz)
• Slim, true-flat enclosure suited for access control, room booking and HMI kiosks

Power over Ethernet
PoE enables data and power over a single cable, simplifying installation, reducing cabling and enabling centralized power management—useful for access control, kiosks and distributed automation nodes.

Design
The S-series HMI is approximately 35% thinner than traditional panel PCs. The slim, true-flat front is easy to clean and integrates neatly into modern industrial and commercial interiors.

P-Cap Touch
Projected capacitive touch supports 4-point multi-touch, offers a glass cover lens resistant to scratches and ensures precise fingertip control for operator applications.

Front IP65
Front panel sealed to IP65 standard to protect against dust ingress and water splash, enabling reliable operation in harsh industrial or public environments.

Technical specifications

• Display: 10.1" 1280 x 800, 350 nits (1000 nits optional), contrast 800:1, active area 216.96 x 135.6 mm
• Processor: Intel® Pentium® N4200 1.1 GHz (up to 2.5 GHz)
• Memory: 4 GB DDR3L (default), 8 GB optional; 1 x SO-DIMM
• Storage: 128 GB SSD default (options: 256 GB / 512 GB / 1 TB), 1 x M.2 2242 SATA III
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45), one port PoE PD optional
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu 20.04/18.04 optional
• Wireless: WLAN/Bluetooth optional via M.2 2230 E-key
• RFID: HF 13.56 MHz optional
• Dimensions: 264.57 x 173.29 x 35.7 mm; cut-out 250 x 159 mm; weight 1.2 kg
• Mounting: Panel mount (default); VESA optional
• Enclosure: plastic front bezel with metal back cover
• IO ports: 2 x USB 3.2 Gen2x1 (Type-A); 1 x RS232/422/485 (default RS232); HDMI 1.4 optional; 1 x Speaker
• Power: 1 x 12V DC (3-pin terminal block); adapter 12V 50W; PoE PD IEEE 802.3at (25 W) optional
• Operating: 0°C to 50°C; storage -10°C to 60°C; humidity 10%–90% RH non-condensing
• Front protection: IP65; Certifications: CE, FCC
• Accessories: AC adapter 100~240V, power cord, terminal block adapters; optional VESA stand and wall/glass mount kits
