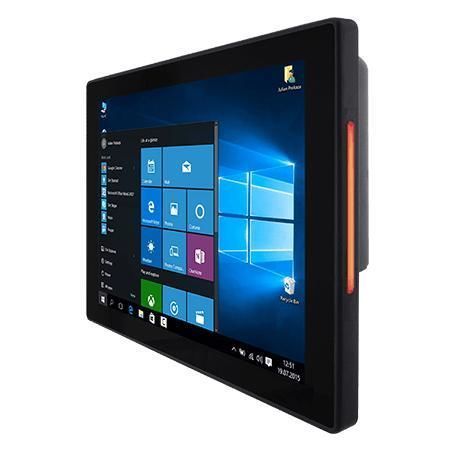

Multitouch screen panel PC R12IE3S-PCM2AC-POE

PCAP capacitive touch screen12.1"1024 x 768

Overview
Winmate R12IE3S-PCM2AC-POE is a 12.1-inch S Series HMI Panel PC powered by Intel® Celeron® N6211 (Elkhart Lake), engineered for machine control, factory automation and operator HMI tasks. The unit features a 12.1" 1024×768 500 nits Projected Capacitive multi-touch, fanless cooling, dual 2.5 GbE ports (one optional with PoE PD), built-in RGB LED status light bars, front IP65 protection and optional camera and HF RFID reader.

Key Features

• 12.1" 1024×768 500 nits display with P‑CAP multi-touch
• Intel® Celeron® N6211 (Elkhart Lake) processor (up to 3.0 GHz)
• Fanless design for low power and silent operation
• Dual 2.5 Gigabit Ethernet (one port optional with PoE PD, IEEE 802.3at, 25 W)
• Built-in RGB LED light bars on both sides for visual status/monitoring
• Front panel rated IP65 against dust and splashes
• Optional 2 MP front camera and optional HF RFID reader (13.56 MHz)
• Multiple storage and memory configurations; TPM 2.0 security

Product Highlights / Features explained

• Power over Ethernet (PoE) - Supports PoE PD (IEEE 802.3at, 25 W) to deliver data and power over a single cable, simplifying installation and enabling centralized power management.
• Slim industrial design - Approximately 35% slimmer profile vs conventional Panel PCs with a true-flat front for easy cleaning and improved integration in control panels and kiosks.
• P‑Cap multi-touch - Projected capacitive glass with 4-point touch for responsive finger operation and scratch resistance.
• Smart monitoring & secure access - Dual RGB LED light bars for remote status indication and optional HF RFID/NFC for restricted access control.
• Front IP65 protection - Sealed front panel suitable for dusty or splash-prone environments common in industrial applications.

Specifications

• Display: 12.1 inches, 1024 x 768, 500 nits, 1000:1 contrast
• Touch / Glass: Projected Capacitive Multi-Touch (4-point)
• Active Area: 245.76 x 184.32 mm
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB (default); 8 GB / 16 GB optional
• Storage: 128 GB SSD (default); 256 GB / 512 GB / 1 TB / 2 TB options
• Ethernet: 2 x 2.5 Giga LAN RJ45 (one port optional with PoE PD, IEEE 802.3at 25 W)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise, Linux Ubuntu 22.04
• WLAN / BT: Optional via M.2 E-Key
• RFID: HF RFID Reader 13.56 MHz (optional)
• Light Bar: Built-in RGB LED on both sides
• Dimensions: 296 x 227 x 46 mm; Cut out: 282 x 207 mm
• Weight: 3.0 kg
• Mounting: Wall mount (default); VESA mount optional
• Enclosure: Metal housing, fanless cooling
• Operating humidity: 10% to 90% RH, non‑condensing
• Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• IP Rating: Front IP65
• Certifications: CE, FCC
• USB: 2 x USB 3.2 Gen1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2242 B-key (SATA III SSD); 1 x M.2 2230 E-key (Wi‑Fi)
• Power input: 1 x 12V DC, 3-pin terminal block; Adapter: 12V 50W (included)
• Accessories: 100~240V AC to DC adapter; power cord; terminal block adapters; VESA screws; optional VESA desk stand (9B0000000412)
