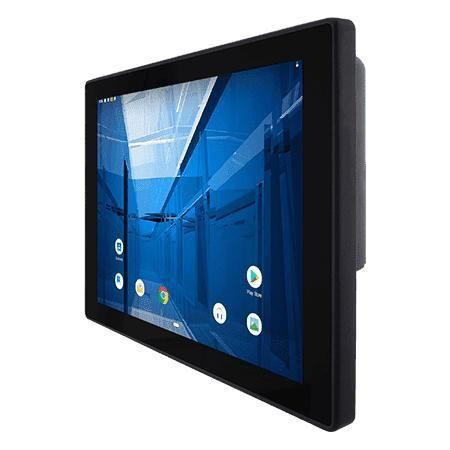

Multitouch screen panel PC R12MG3S-PCM2-POE

touch screencapacitive touch screenPCAP capacitive touch screen

Overview
Winmate R12MG3S-PCM2-POE is a 12.1" S Series HMI Panel PC with ARM A78 + A55 processor designed for machine control, factory automation and operator HMI. It delivers industrial-grade reliability with long lifecycle availability, modular options and low power consumption for embedded and OEM integrations.

Key features

• 12.1" 1024 x 768 Resolution with Projected Capacitive Multi-Touch (P-CAP)
• Support PoE function (Power over Ethernet, PD IEEE 802.3at up to 25 W)
• Optional 2MP front camera
• Optional HF RFID reader (13.56 MHz)
• Front IP65 water and dust protection
• Fanless cooling and ultralow power consumption
• VESA mountable metal housing for panel or enclosure integration

Seamless Connectivity with P-Cap Touch Screens
Projected capacitive multi-touch provides responsive 4-point input, visual clarity and durable operation for industrial HMIs where accurate and fast user interaction is required. The display supports 500 nits brightness and wide viewing angles for diverse lighting conditions.

A Tranquil Work Environment with Fanless Design
The S-series HMI uses fanless cooling with heat sinks and vapor chambers to manage temperature quietly and efficiently, reducing maintenance and improving field reliability in control panels and operator stations.

Shielded from Water and Dust with IP65 Certification
The front IP65 rating protects against water splashes and dust ingress on the front panel, enabling use in environments exposed to accidental spills, washdown or dusty production areas.

Wires That Do More (Power over Ethernet)
PoE support (PD following IEEE 802.3at up to 25 W) enables combined data and power delivery over a single Ethernet cable, simplifying installations and enabling flexible placement of devices in demanding or remote locations.

Technical specifications

• Display - Size: 12.1 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen
• Display - Resolution: 1024 x 768
• Display - Panel Brightness: 500.0 nits
• Display - Contrast Ratio: 1000:1
• Display - View Angles: 89, 89, 89, 89
• Display - Active Area: 245.76 x 184.32 mm
• System - Processor: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
• System - Memory: 4 GB LPDDR4
• System - Storage: Onboard 32 GB
• System - Operating System: Android 13 (Default); Linux Yocto 5.15.47 with QT 5.15 (Optional); Linux Ubuntu 22.04 (Optional)
• System - WLAN: Support (Optional)
• System - Bluetooth: Support (Optional)
• System - RFID: HF RFID Reader 13.56 MHz (Optional)
• Mechanical - Dimension: 296 x 227 x 46 mm
• Mechanical - Cut out: 282 x 207 mm
• Mechanical - Weight: 3.4 kg
• Mechanical - Mounting: VESA Mount
• Mechanical - Enclosure: Metal Housing
• Mechanical - Cooling System: Fanless Design
• Environment - Operating Humidity: 10% to 90% RH, Non-Condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -20°C to 60°C
• Environment - Shock: MIL-STD-810H Method 516.8 Procedure I
• Environment - Vibration: MIL-STD-810H Method 514.8 Procedure I
• Environment - IP rating: Front IP65
• Certification: CE, FCC
• IO Ports - USB: 2 x USB 2.0 Type A; 1 x USB 2.0 Type C (OTG)
• IO Ports - Serial: 1 x RS232/422/485 (Default RS232)
• IO Ports - LAN: 1 x LAN 10/100/1000 Mbps
• IO Ports - Video: 1 x Micro HDMI Output (Optional)
• IO Ports - Audio: 2 x Speaker
• IO Ports - SD Card Slot: 1 x Micro SD card slot
• Accessory: 100~240V AC to DC Adapter; Power Cord; Terminal Block to 2.5Ø Female Adapter Cable; Open Wire Cable with terminal block connector; VESA screws
• Power - Power Rating: 12V DC with Terminal Block (Default); 9~36V (Optional)
• Power - Adapter: 12V 50W
• Power - POE: PoE (PD) follows IEEE 802.3at (25 W)
• Model: R12MG3S-PCM2-POE
• Brand: Winmate
