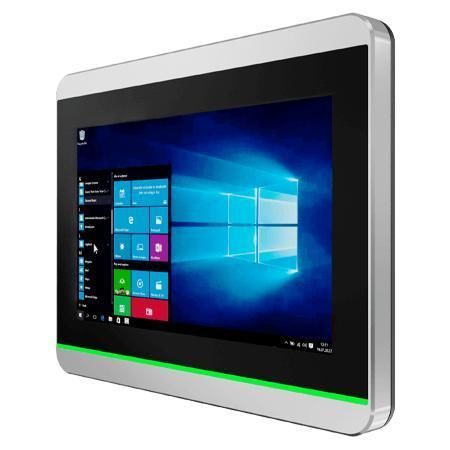

Multitouch screen panel PC W07IP3S-PCO1AC-POE

PCAP capacitive touch screen1000 nits7"

Overview
Winmate W07IP3S-PCO1AC-POE is a 7.0-inch S Series HMI panel PC designed for machine control, factory automation and operator interfaces. It integrates an Intel® Pentium® N4200 processor, fanless cooling, a high-brightness PCAP display and optional PoE power and modular I/O (camera, HF RFID). The front panel is protected to IP65 for dust and splash resistance.

Key Features

• 7.0-inch 1024 x 600 projected capacitive (PCAP) multi-touch display, 1000 nits
• Intel® Pentium® N4200 (Apollo Lake) processor
• Fanless design with low power consumption
• Dual Ethernet (2 x Intel® controllers, 2.5 GbE), one port optional PoE PD (IEEE 802.3at, 25 W)
• Built-in RGB LED status light bar (both sides)
• Front IP65 protection
• Optional 2 MP front camera and HF RFID reader (13.56 MHz)
• TPM 2.0 security support
• Optional Windows 10 IoT Enterprise or Linux distributions

Highlights & Typical Uses

• Power over Ethernet simplifies installation by combining data and power on a single cable for kiosks, access control and remote HMIs
• Slim true-flat front for easy cleaning in industrial and public environments
• PCAP glass lens provides scratch resistance and 4-point multi-touch for operator use
• RGB light bar and optional HF RFID/NFC support simple status signaling and limited access control

Certifications

• Front IP65
• CE
• FCC

Technical specifications

• Model: W07IP3S-PCO1AC-POE
• Brand: Winmate
• Processor: Intel® Pentium® N4200 1.1 GHz (burst up to 2.5 GHz)
• Memory: 4 GB DDR3L (default); 8 GB optional
• Storage: 128 GB SSD default; options 256 GB / 512 GB / 1 TB (M.2 2242 SATA)
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 GbE RJ45)
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu options
• WLAN / BT: optional via M.2 2230 E-Key
• RFID: HF 13.56 MHz (optional)
• Display: 7.0-inch PCAP multi-touch; Resolution 1024 x 600; Brightness 1000 nits; Contrast 700:1; Viewing angles 75/75/75/70; Active area 153.6 x 90 mm
• Dimensions: 189.4 x 145.4 x 39.8 mm; Cut out 175.5 x 131.5 mm
• Weight: approx. 1.0 kg
• Mounting: wall mount standard; VESA optional
• Enclosure: metal housing
• Operating humidity: 10%–90% RH non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C (some summaries show -20°C to 60°C)
• IP rating: front IP65 (full enclosure IP22)
• Certifications: CE, FCC
• I/O ports: 2 x USB 3.2 Gen2x1 Type-A; 1 x RS232/422/485 (default RS232); 2 x LAN (one optional PoE PD); 1 x HDMI 1.4 optional; 1 x speaker
• Expansion: 1 x M.2 2242 B-key (SATA SSD); 1 x M.2 2230 E-key (Wi‑Fi)
• Power input: 1 x 12 V DC 3-pin terminal block (adapter 12 V 50 W included); optional 9–36 V support
• PoE: PoE PD IEEE 802.3at (25 W)
• Included accessories: 100–240 V AC to DC adapter, power cord, terminal block adapter cable, open wire cable with terminal connector, VESA screws, driver CD & manual
• Optional accessories: VESA desk stand, front side wall mount kit, VESA bracket mounting kit
