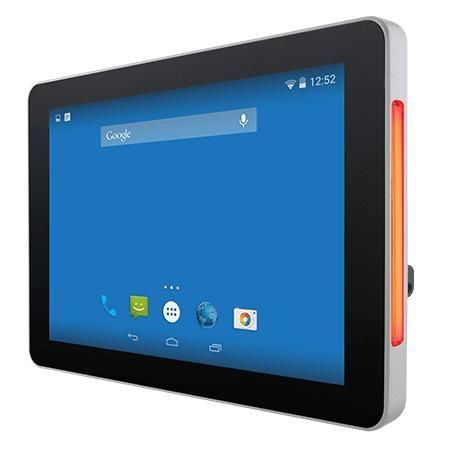

Touch screen panel PC W10FA3S-PCH2AC-POE

multitouch screenPCAP capacitive touch screencapacitive touch screen

Overview
Winmate W10FA3S-PCH2AC-POE is a 10.1-inch NXP i.MX6 S‑series HMI panel PC for machine control, factory automation and operator interfaces. The fanless design and ultra-low power consumption suit embedded or mission‑critical installations. Key hardware features include a 1280×800 P‑Cap multi‑touch display, PoE power input, front IP65 sealing, optional front camera and HF RFID reader, and an integrated RGB LED light bar for status indication.

Key Features

• 10.1" 1280 × 800 projected capacitive multi‑touch (P‑Cap)
• Fanless cooling and ultra‑low power consumption
• Power over Ethernet (PoE PD, IEEE 802.3at)
• Optional 2 MP front camera
• Optional HF RFID/NFC reader (13.56 MHz)
• Front panel sealed to IP65
• Built‑in RGB LED light bar for status indication

Product Details

• Power over Ethernet: Data and power over a single cable simplifies installation; PoE PD conforms to IEEE 802.3at (25 W).
• Slim S‑series design: Approximately 35% thinner than traditional panel PCs with a true‑flat front for easy cleaning and integration.
• P‑Cap touch: 4‑point multi‑touch with glass cover lens resistant to scratches, optimized for finger operation.
• LED light bar & RFID: Programmable RGB LED status bar and optional HF RFID/NFC for limited access control integration.
• Front IP65: Front bezel sealed to IP65 to protect against dust and water splashes.
• Certifications: CE and FCC compliance.

Specifications

• Display - Size: 10.1 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch (4‑point), glass cover
• Display - Resolution: 1280 x 800
• Display - Brightness: 350 nits
• Display - Contrast Ratio: 800:1
• Display - Active Area: 216.96 x 135.6 mm
• System - Processor: NXP i.MX6 Dual Core, 1.0 GHz
• System - Memory: 1 GB (default); 2 GB (optional)
• System - Storage: eMMC 16 GB (default); eMMC 32 GB (optional)
• OS Options: Linux Ubuntu 18.04, Android 6.0, Debian 7.0, Linux 4.1.15 + Qt 5.5 (optional)
• Wireless: WLAN / Bluetooth support (optional)
• RFID: HF 13.56 MHz (optional)
• Mechanical - Dimensions: 263.48 x 172 x 35.7 mm; Cut‑out: 250 x 159 mm; Weight: 1.2 kg
• Mounting: Wall mount (default); VESA mount (optional)
• Enclosure: Metal housing; Cooling: Fanless
• Environment - Operating Temp: 0°C to 50°C; Humidity: 10%–90% RH non‑condensing
• IP Rating: Front IP65
• Power - Input: 1 x 12 V DC (2‑pin terminal); Adapter: 12 V 50 W; PoE: PD IEEE 802.3at (25 W)
• IO - USB: 1 x Console (Mini USB), 1 x USB OTG, 1 x USB 2.0 Type‑A
• IO - Serial: 1 x RS232/422/485 (default RS232)
• IO - LAN: 1 x RJ45 with PoE (PD)
• IO - Video: 1 x Micro HDMI (optional)
• IO - Audio: 1 x Speaker; SD: Micro SD slot; Expansion: 1 x mPCIe slot
• IO - CANBUS: 1 x D‑sub9
• Accessories (included): 100–240V AC to DC adapter, power cord, adapter cables, VESA screws
