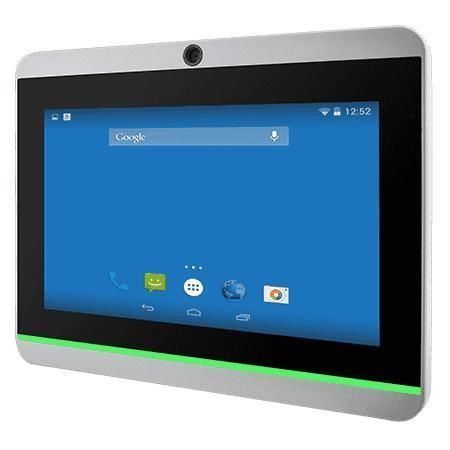

Multitouch screen panel PC W07FA3S-PCO1AC-POE

PCAP capacitive touch screen1000 nits7"

Overview
Winmate W07FA3S-PCO1AC-POE is a 7-inch industrial HMI panel PC (NXP i.MX6 S-Series) for machine control, factory automation and operator interfaces. The fanless, low-power design supports PoE power delivery and offers optional 2MP front camera and HF RFID reader plus a built-in RGB LED status light bar for remote status indication.

Key Features

• 7" 1024 x 600 display with Projected Capacitive Multi-Touch (PCAP)
• Fanless cooling and ultra-low power consumption
• Built-in RGB LED light bar (programmable)
• Power over Ethernet support (PoE PD, IEEE 802.3at, up to 25 W)
• Optional 2MP front camera and HF RFID reader (13.56 MHz)
• Front panel protection IP65 (dust and water splash)
• Metal enclosure, wall mount default, optional VESA

Highlights and Usage
PoE reduces cabling by delivering data and power over one Ethernet cable, enabling simplified installation and centralized power management for access control, room booking, industrial HMI and building automation applications.

Design and Touch
The S-Series offers a thin true-flat front for easy cleaning and modern integration. The glass cover lens improves scratch resistance while projected capacitive touch supports multi-touch operation for interactive HMI tasks.

LED Light Bar & HF RFID
Programmable RGB LED light bar on both sides provides visible status feedback from a distance. Optional HF RFID/NFC (13.56 MHz) enables basic access control and identification functions.

Front IP65
The sealed front panel meets IP65 to protect against dust ingress and water splashes, ensuring reliable operation in industrial environments.

Technical specifications

• Display: 7.0"; Resolution 1024 x 600; Panel Brightness 1000 nits; Contrast Ratio 700:1; View Angles 75/75/75/70; Active Area 153.6 x 90 mm
• Processor: NXP i.MX6 Dual Core 1.0 GHz
• Memory: 1 GB (default); 2 GB (optional)
• Storage: eMMC 16 GB (default); eMMC 32 GB (optional)
• Operating Systems (optional): Linux Ubuntu 18.04, Android 6.0, Debian 7.0, Linux 4.1.15 QT 5.5
• Wireless: WLAN/BT support (optional via mPCIe)
• RFID: HF 13.56 MHz (optional)
• Light Bar: Built-in RGB LED status light bar (both sides)
• Dimensions: 189.4 x 145.4 x 39.8 mm; Cut out: 175.5 x 131.5 mm; Weight: ~1.0 kg
• Mounting: Wall mount (default); VESA mount (optional)
• Enclosure: Metal housing; Cooling: Fanless
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C–50°C; Storage temperature -10°C–60°C
• IP Rating: Front IP65
• Certifications: CE, FCC
• I/O: 1 x Console (Mini USB); 1 x USB OTG; 1 x USB 2.0 Type-A; 1 x RS232/422/485 (default RS232); 1 x RJ45 with PoE (PD, IEEE 802.3at); 1 x Micro HDMI (optional); 1 x Speaker; 1 x Micro SD slot; 1 x mPCIe slot (for Wi‑Fi)
• CANBUS: 1 x D-sub9
• Power: 1 x 12V DC (2-pin terminal block); Adapter: 12V 50W; PoE PD up to 25 W (IEEE 802.3at)
• Accessories: 100~240V AC-DC adapter, power cord, terminal block adapters, open-wire cable with terminal block, VESA screws; optional desk stand and wall mount kits
