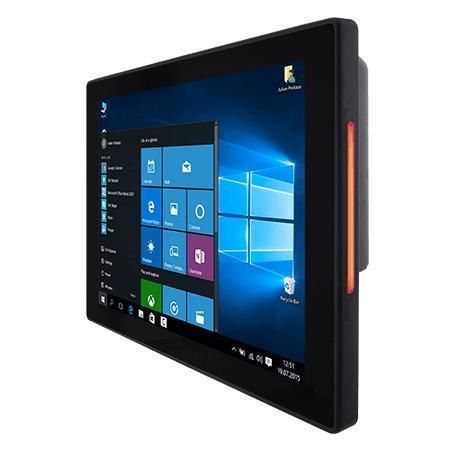

Multitouch screen panel PC R12IP3S-PCM2AC-POE

PCAP capacitive touch screen12.1"1024 x 768

Overview
The R12IP3S-PCM2AC-POE is a 12.1-inch S-Series HMI Panel PC powered by Intel® Pentium® N4200, designed for machine control, factory automation and operator interfaces. It features fanless cooling, low power consumption, an IP65 front panel and optional Power over Ethernet (PoE) for simplified installation and centralized power management.

Key Features

• 12.1-inch 1024 x 768 display with Projected Capacitive Multi-Touch (PCAP)
• Fanless cooling and ultralow power consumption
• Power over Ethernet support (PoE PD, IEEE 802.3at, 25 W)
• Optional 2 MP front camera
• Optional HF RFID reader (13.56 MHz)
• Built-in RGB LED status light bar (both sides), programmable colors
• Front panel IP65 — water and dust proof
• Slim true-flat design for easy cleaning

Design & Operation Highlights

• PoE reduces cabling and enables centralized power management — ideal for access control and industrial automation
• Projected capacitive touch with durable glass supports 4-point multi-touch and scratch resistance
• RGB light bar provides remote visual status indication (red/green/blue/orange)

Certifications

• CE
• FCC

Technical specifications

• Display Size: 12.1 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1024 x 768
• Panel Brightness: 500 nits
• Contrast Ratio: 1000:1
• View Angles: 89/89/89/89
• Active Area: 245.76 x 184.32 mm
• Processor: Intel® Pentium® N4200 1.1 GHz (up to 2.5 GHz)
• Memory: 4 GB (default), 8 GB (optional)
• Storage: 128 GB SSD (default); optional 256 GB, 512 GB, 1 TB
• Ethernet: 2 x Intel® Ethernet controllers (2 x 2.5 Giga LAN RJ45); one port optionally supports PoE PD (IEEE 802.3at, 25 W)
• Security: TPM 2.0
• Operating System: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu optional
• WLAN / Bluetooth: optional
• RFID: HF RFID Reader 13.56 MHz optional
• Light Bar: Built-in RGB LED status light bar on both sides
• Dimensions (W x H x D): 296 x 227 x 46 mm
• Cut out: 282 x 207 mm
• Weight: 3.0 kg
• Mounting: Wall mount (default); VESA mount optional
• Enclosure: Metal housing
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• Certifications: CE, FCC
• IO Ports: 2 x USB 3.2 Gen2x1 (Type-A); 1 x RS232/422/485 serial (default RS232)
• LAN: 2 x 2.5 Giga LAN RJ45 connectors (one PoE PD optional)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2242 B-key (SATA III SSD); 1 x M.2 2230 E-key (Wi‑Fi module)
• Video (optional): HDMI 1.4 optional
• Power Input: 1 x 12 V DC, 3-pin terminal block
• Power Rating / Adapter: 12 V DC (standard); 12 V 50 W adapter
• PoE: PoE (PD) follows IEEE 802.3at (25 W)
• Accessories: AC 100–240 V to DC adapter; power cord; terminal block to 2.5Ø female adapter cable; open wire cable with terminal block connector; VESA screws
• Optional Accessory: VESA desk stand (9B0000000412)
