Touch screen panel PC W10FA3S-PCH2-POE

multitouch screenPCAP capacitive touch screen10.1"

Overview

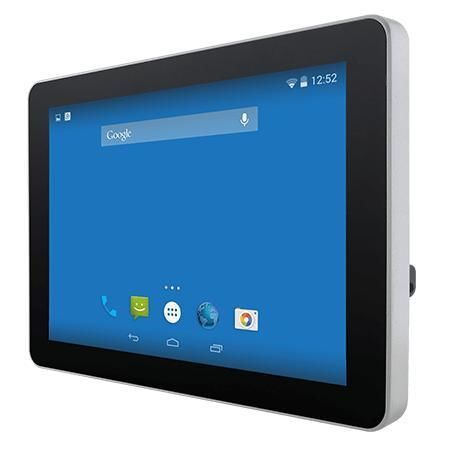

Winmate W10FA3S-PCH2-POE is a 10.1-inch NXP i.MX6 S-series industrial HMI Panel PC for machine control, factory automation and operator interfaces. It is engineered for embedded and mission-critical environments requiring fanless, low-power operation, long lifecycle availability and PoE deployment. Typical uses include machine HMI, access control, room booking and room information terminals.

Key Features

• 10.1" 1280 x 800 resolution with projected capacitive multi-touch (PCAP)
• Fanless cooling and ultra-low power consumption
• Power over Ethernet (PoE) support (PD, IEEE 802.3at)
• Optional 2 MP front camera
• Optional HF RFID reader (13.56 MHz)
• Slim, flat design for easy cleaning and visible installations
• Front panel protection: IP65 (dust and water splash)

Product Highlights / Functional Description
The Panel PC reduces installation complexity by combining data and power over a single Ethernet cable via PoE, enabling centralized power management for access control and automation systems. The S-series enclosure is up to 35% thinner than traditional Panel PCs and features a true flat front surface for simplified cleaning and maintenance. The PCAP touch panel supports 4-point multi-touch and is protected by a glass cover lens for improved scratch resistance and usability. The sealed front meets IP65 for protection against dust and splashes.

Certifications

• CE
• FCC

Accessories

• 100~240V AC to DC adapter
• Power cord
• Terminal block to 2.5Ø female adapter cable
• Open wire cable with terminal block connector
• VESA screws
• Optional: VESA desk stand, front-side wall mount kit, glass wall mount kit (right/left), VESA bracket mounting kit

Notes
Designed for industrial environments with fanless operation and multiple optional OS images (Linux, Android, Debian). Front IP65 makes the device suitable where splash and dust resistance are required.

Technical specifications

• Display - Size: 10.1 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen
• Display - Resolution: 1280 x 800
• Display - Panel Brightness: 350.0 nits
• Display - Contrast Ratio: 800:1
• Display - View Angles: 85,85,85,85
• Display - Active Area: 216.96 x 135.6 mm
• System - Processor: NXP i.MX6 Dual Core, 1.0 GHz
• System - Memory: 1 GB (Default); 2 GB (Optional)
• System - Storage: eMMC onboard 16 GB (Default); eMMC onboard 32 GB (Optional)
• System - Operating System: Linux Ubuntu 18.04 (Optional); Android 6.0 (Optional); Debian 7.0 (Optional); Linux 4.1.15 QT 5.5 (Optional)
• System - WLAN: Support (Optional)
• System - Bluetooth: Support (Optional)
• System - RFID: HF RFID Reader 13.56 MHz (Optional)
• Mechanical - Dimension: 264.57 x 173.29 x 35.7 mm
• Mechanical - Cut out: 250 x 159 mm
• Mechanical - Weight: 1.2 kg
• Mechanical - Mounting: Wall mount (Default); VESA mount (Optional)
• Mechanical - Enclosure: Plastic front bezel with metal back cover
• Mechanical - Cooling System: Fanless design
• Environment - Operating Humidity: 10% to 90% RH, Non-Condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -10°C to 60°C
• Environment - IP rating: Front IP65
• Certification: CE, FCC
• IO Ports - USB: 1 x Console Port (Mini USB); 1 x USB OTG; 1 x USB 2.0 (Type-A)
• IO Ports - Serial: 1 x RS232/422/485 (Default RS232)
• IO Ports - LAN: 1 x LAN RJ45 connector with PoE (PD, 802.3at)
• IO Ports - Video: 1 x Micro HDMI (Optional)
• IO Ports - Audio: 1 x Speaker
• IO Ports - SD Card Slot: 1 x Micro SD card slot
• IO Ports - Expansion Port: 1 x mPCIe slot (for Wi-Fi module)
• IO Ports - CANBUS: 1 x CANBUS, D-sub9
• Power - Power Input: 1 x 12V DC, 2-Pin Terminal Block
• Power - Power Rating: 12V DC
• Power - Adapter: 12V 50W
• Power - PoE: PoE (PD) follows IEEE 802.3at (25 W)
