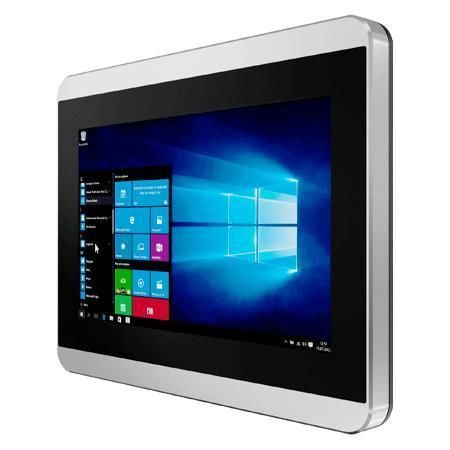

Multi-touch screen panel PC W07IP3S-PCO1-POE

PCAP capacitive touch screen1000 nits7"

Overview
Winmate W07IP3S-PCO1-POE is a 7-inch S Series HMI Panel PC powered by Intel Pentium N4200 (Apollo Lake) designed for machine control, factory automation and operator HMI. It offers a fanless, ultra-low-power design with front IP65 protection and full IP22 enclosure rating, dual Gigabit Ethernet, optional PoE power delivery, optional 2 MP front camera and optional HF RFID reader. The device targets industrial buyers, OEMs and system integrators requiring rugged, durable HMI hardware with long lifecycle availability.

Key Features

• 7-inch 1024 x 600 projected capacitive (PCAP) multi-touch screen
• Intel Pentium N4200 Apollo Lake processor (1.1 GHz, up to 2.5 GHz)
• Fanless cooling and ultra-low power consumption
• Dual Gigabit Ethernet (one optional with PoE PD IEEE 802.3at, 25 W)
• Front IP65 protection
• Optional 2 MP front camera
• Optional HF RFID reader (13.56 MHz)
• Support for PoE function
• Slim, stylish design suitable for room booking, access control and room information applications

Design & Human Interface
Stylish and slim S-series housing with true flat front for easy cleaning and modern interiors. Glass cover lens with P-Cap touch supporting multi-touch for finger operation and scratch resistance.

PoE and Installation
Supports Power over Ethernet to combine data and power over a single cable for simplified hardware installation and centralized power management. Wall mount is default; VESA mount available as optional.

Durability & Environment
Front side sealed to IP65 for protection against dust and water splashes; metal housing and fanless design suitable for industrial environments. Operating temperature and humidity ranges support typical factory-floor conditions.

Certifications

• CE
• FCC

Caractéristiques / spécifications techniques

• Display — Size: 7.0 inches
• Display — Touch / Glass: Projected capacitive multi-touch screen
• Display — Resolution: 1024 x 600
• Display — Panel Brightness: 1000 nits
• Display — Contrast Ratio: 700:1
• Display — View Angles: 75, 75, 75, 70
• Display — Active Area: 153.6 x 90 mm
• Processor — Intel Pentium N4200 (1.1 GHz, up to 2.5 GHz)
• Memory — 4 GB DDR3L (default); 8 GB optional
• Storage — 128 GB SSD (default); optional 256 GB, 512 GB or 1 TB SSD (M.2 2242)
• Ethernet controller — 2 x Intel Ethernet Controller (I210-AT)
• Security — TPM 2.0
• Operating System — Windows 10 IoT Enterprise 64-bit (optional); Linux Ubuntu (optional)
• WLAN / BT — Support optional via M.2 2230 E-Key module
• RFID — HF RFID Reader 13.56 MHz (optional)
• Mechanical — Dimension: 189.4 x 145.4 x 39.8 mm
• Mechanical — Cut out: 175.5 x 131.5 mm
• Mechanical — Weight: 1.0 kg
• Mechanical — Mounting: Wall mount (default); VESA mount optional
• Mechanical — Enclosure: Metal housing
• Cooling System — Fanless design
• Environment — Operating Humidity: 10% to 90% RH, non-condensing
• Environment — Operating Temperature: 0°C to 50°C
• Environment — Storage Temperature: -10°C to 60°C (some sources show -20°C to 60°C)
• IP Rating — Front IP65, full device IP22
• Certification — CE, FCC
• IO Ports — USB: 2 x USB 3.2 Gen2x1 Type-A
• IO Ports — Serial: 1 x RS232/422/485 (default RS232)
• IO Ports — LAN: 2 x 2.5 Giga LAN RJ45 (one with PoE PD IEEE 802.3at, 25 W) — optional PoE on one port
• IO Ports — Video: HDMI 1.4 (optional)
• IO Ports — Audio: 1 x speaker
• IO Ports — Expansion: 1 x M.2 2242 B-key slot (for SATA III SSD), 1 x M.2 2230 E-key slot (for Wi-Fi module)
• Power Input — 1 x 12V DC, 3-pin terminal block
• Power Rating — 12V DC (9–36V optional)
• Adapter — 12V 50W adapter (included/available)
• PoE — PoE (PD) follows IEEE 802.3at (25 W)
• Accessories — 100–240V AC to DC adapter; power cord; terminal block to 2.5Ø female adapter cable; open wire cable with terminal block connector; VESA screws
• Optional Accessories — VESA desk stand; front side wall mount kit; VESA bracket mounting kit
