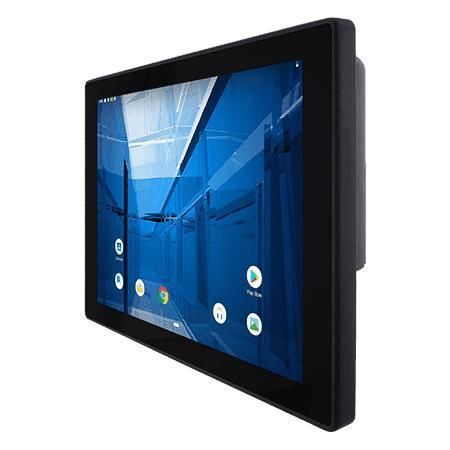

Panel PC with touch screen R12IM3S-PCM2-POE

multi-touch screenTFT LCDPCAP capacitive touch screen

Product Overview

The R12IM3S-PCM2-POE is a 12.1-inch HMI Panel PC powered by an ARM A53 S-series processor, engineered for machine control, factory automation and operator HMI tasks. It integrates a 1024 x 768 TFT display with projected capacitive multi-touch (P-CAP), fanless cooling, Power over Ethernet (PoE) support and a front IP65 protection rating. Optional HF RFID and multiple OS options make it suitable for access control, room booking terminals and embedded industrial applications requiring long lifecycle availability.

Key Features

• 12.1" 1024 x 768 TFT with projected capacitive multi-touch (P-CAP)
• Fanless design and ultra-low power consumption
• Power over Ethernet (PoE) support (IEEE 802.3at PD, 25 W)
• Optional HF RFID reader (13.56 MHz)
• Thin, flat front design for easy cleaning and panel integration
• Front panel sealed to IP65 for water and dust protection
• Supports Android or Linux operating systems

Product Details

Power over Ethernet
PoE (PD) supplies both data and power over a single cable, simplifying installation and enabling centralized power management for distributed access control and automation deployments.

Thin, serviceable design
The S-series panel is significantly thinner than conventional Panel PCs and features a true flat front for straightforward cleaning and reduced edge accumulation in commercial and industrial environments.

P-Cap Touch (scratch resistant)
Hardened glass cover provides scratch resistance. Projected capacitive touch supports multi-touch finger operation for precise and responsive input.

Front IP65 protection
The front bezel is sealed to IP65, protecting against dust ingress and water splashes—suitable for sites where occasional spills or spray may occur.

Certifications

• CE
• FCC

Technical specifications

• Display: 12.1 inches, 1024 x 768, 500 nits, 1000:1 contrast, view angles 89/89/89/89, active area 245.76 x 184.32 mm
• Touch / Glass: Projected Capacitive Multi-Touch (P-CAP), hardened glass
• Processor: ARM A53 (Quad Core, 2.0 GHz)
• Memory: 4 GB LPDDR4
• Storage: 32 GB eMMC onboard
• Operating System: Android 11 (default, upgradable to Android 13); Linux Yocto 5.15.47 + Qt 5.15 (optional); Ubuntu Server 22.04 (optional)
• Wireless: WLAN / Bluetooth (optional)
• RFID: HF RFID 13.56 MHz (optional)
• Mechanical: 296 x 227 x 46 mm; cut-out 282 x 207 mm; weight 3.4 kg; VESA mount; metal housing
• Environmental: Operating humidity 10%–90% RH non-condensing; operating temperature 0°C to 50°C; storage -20°C to 60°C
• Ruggedness: Shock MIL-STD-810H Method 516.8 Proc I; Vibration MIL-STD-810H Method 514.8 Proc I
• IO Ports: 2 x USB 2.0 Type-A; 1 x Micro USB 2.0 OTG; 1 x RS232/422/485 (default RS232); 1 x LAN 10/100/1000 Mbps; 1 x Micro HDMI (optional); 2 x speaker; 1 x Micro SD slot (max 32 GB)
• Power: 12 V DC terminal block (default); optional 9–36 V; adapter 12 V 50 W; PoE PD IEEE 802.3at (25 W)
• Accessories: AC/DC adapter (100–240 V), power cord, terminal block to 2.5Ø female adapter cable, open wire cable with terminal block connector, VESA screws
