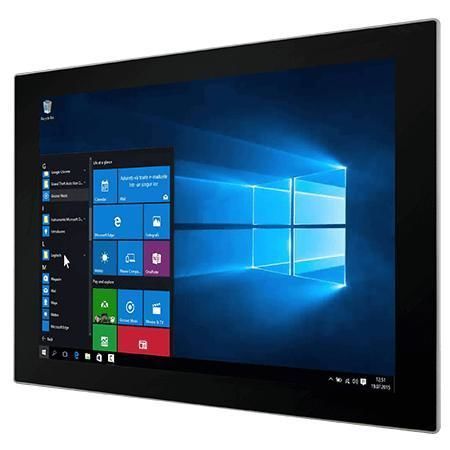

PCAP capacitive touch screen panel PC R15IE3S-PCC3-POE

multi-touch screentouch screen15"

Product Overview
Winmate R15IE3S-PCC3-POE is a 15-inch S Series HMI Panel PC built around the Intel® Celeron® Elkhart Lake N6211 processor. It is engineered for machine control, factory automation and operator HMI applications where fanless operation, low power consumption and long-term availability are required.

Key Features

• 15” 1024 x 768 300 nits display with projected capacitive (PCAP) multi-touch
• Intel® Celeron® N6211 processor (up to 3.0 GHz)
• Fanless thermal design and ultra-low power consumption
• Dual 2.5 Gigabit Ethernet ports (one optional with PoE PD)
• Front panel rated IP65 for dust and water protection
• Optional 2 MP front camera and HF RFID reader (13.56 MHz)
• Supports PoE PD (IEEE 802.3at, up to 25 W)
• Slim, flat-front design for easy cleaning and integration

PoE / Connectivity
PoE (Power over Ethernet) capability allows data and power delivery over a single cable (PD, IEEE 802.3at, 25 W), reducing cabling and enabling centralized power management for access control, building automation and industrial installations. Dual 2.5 Giga LAN provides higher throughput for modern networks.

Design & Touch
The S Series features a slim profile (~35% thinner than conventional panel PCs) and a true flat front with a glass cover lens. Projected capacitive touch supports 4-point multi-touch for intuitive finger operation and improved durability for industrial environments.

Protection & Certifications

• Front IP65 (water and dust resistant)
• CE
• FCC

Technical specifications

• Display: 15.0"; Resolution: 1024 x 768; Brightness: 300 nits; Contrast: 2000:1; Active area: 304.1 x 228.1 mm; PCAP multi-touch
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB (default); optional 8 GB / 16 GB
• Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB / 2 TB
• Ethernet: 2 x 2.5 Giga LAN (RJ45), one port optional PoE PD (IEEE 802.3at, 25 W)
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Windows 10 IoT Enterprise 64-bit, Linux Ubuntu 22.04 (all optional)
• WLAN / BT: optional
• RFID: HF 13.56 MHz (optional)
• IO: 2 x USB 3.2 Gen1 Type-A; 1 x RS232/422/485 (default RS232); Audio: 2 x speaker
• Expansion: 1 x M.2 2242 B-key (SATA III SSD); 1 x M.2 2230 E-key (Wi‑Fi module)
• Power: 1 x 12V DC (3-pin terminal block); adapter 12V 50W included; PoE PD follows IEEE 802.3at (25 W)
• Mechanical: 363.4 x 277.86 x 45.2 mm; Cut-out: 346.5 x 261 mm; Weight: 3.5 kg; Enclosure: metal
• Mounting: Wall mount (default); VESA mount (optional)
• Environment: Operating 0°C to 50°C; Storage -10°C to 60°C; Humidity 10%–90% RH non-condensing
• Accessories included: 100~240V AC to DC adapter, power cord, terminal block adapters, open wire cable, VESA screws; Optional: VESA desk stand (9B0000000412), front side wall mount kit (99K000A00006)
