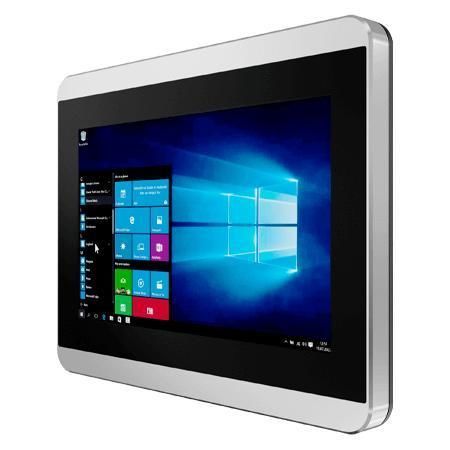

Multitouch screen panel PC W07IE3S-PCT1-POE

PCAP capacitive touch screen7"1024 x 600

Overview The Winmate W07IE3S-PCT1-POE is a 7.0-inch S Series HMI Panel PC driven by an Intel® Celeron® N6211 (Elkhart Lake). It features a projected capacitive multi-touch display, fanless cooling, dual 2.5GbE connectivity with optional PoE PD, and front-side IP65 protection. It is targeted at machine control, factory automation and operator HMI applications where compact footprint, low power and industrial-grade connectivity are required.

Key Features

• 7.0" 1024 x 600 panel, PCAP multi-touch (4-point)
• Intel® Celeron® N6211 processor (up to 3.0 GHz)
• Fanless design for low power and silent operation
• Dual 2.5 Gigabit Ethernet (one port optional PoE PD, IEEE 802.3at, 25 W)
• Front-side IP65 water and dust protection
• Optional 2 MP front camera and HF RFID reader (13.56 MHz)
• Support for PoE to combine data and power on a single cable

Certifications

• Front IP65
• CE
• FCC

Product highlights and design
The S Series implements Power over Ethernet to reduce cabling and enable centralized power management. The panel has a slim true-flat profile and a glass cover lens for scratch resistance and easy cleaning. Front-side sealing to IP65 increases resilience against dust and splashes. The device supports M.2 expansion for WLAN and SSD options and offers TPM 2.0 for platform security.

Technical specifications (selected)

• Display: 7.0" (1024 x 600), 320 nits, active area 153.6 x 90 mm
• Touch / Glass: Projected Capacitive Multi-Touch, 4-point, glass cover
• Memory / Storage: 4 GB (default) — optional 8 / 16 GB; 128 GB SSD (default) — optional up to 2 TB
• Ethernet: 2 x 2.5 Giga LAN RJ45 (one port optional PoE PD, IEEE 802.3at, 25 W)
• IO: 2 x USB3.2 Gen1 Type-A, 1 x RS232/422/485 (default RS232), 1 x Speaker
• Expansion: M.2 2242 B-key (SATA SSD), M.2 2230 E-key (Wi‑Fi)
• Power: 1 x 12V DC via 3-pin terminal block; adapter 12V 50W included
• Dimensions / Mounting: 189.4 x 145.4 x 39.8 mm; cut-out 175.5 x 131.5 mm; wall mount (VESA optional)
• Operating: 0°C to 50°C; humidity 10%–90% RH non-condensing
