Multi-touch screen panel PC W07MG3S-PCO1-POE
PCAP capacitive touch screen1000 nits7"

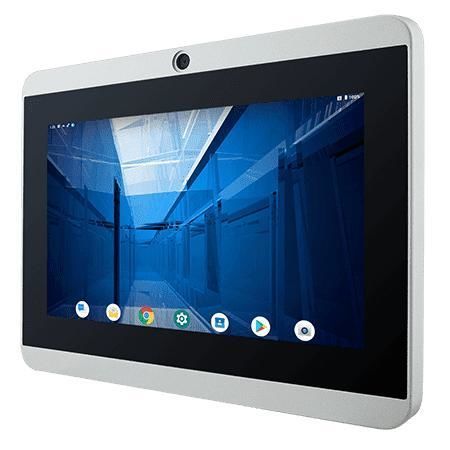

Multi-touch screen panel PC - W07MG3S-PCO1-POE - Winmate, Inc. - PCAP capacitive touch screen / 1000 nits / 7"
Multi-touch screen panel PC - W07MG3S-PCO1-POE - Winmate, Inc. - PCAP capacitive touch screen / 1000 nits / 7"
Multi-touch screen panel PC - W07MG3S-PCO1-POE - Winmate, Inc. - PCAP capacitive touch screen / 1000 nits / 7" - image - 2
Multi-touch screen panel PC - W07MG3S-PCO1-POE - Winmate, Inc. - PCAP capacitive touch screen / 1000 nits / 7" - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP capacitive touch screen, multi-touch screen, 1000 nits
Display size
7"
Resolution
1024 x 600
Processor
ARM Cortex-A78
Memory
LPDDR4
Operating system
Linux® Ubuntu™, Linux® Yocto, Android
Construction
fanless, in metal housing
Mounting
VESA mounting
Protection level
IP65, waterproof front panel
Integrated peripheral
with RFID reader, with webcam
Other characteristics
all-in-one, HMI, PoE
Memory size

4 GB

Description

Overview
  • Winmate W07MG3S-PCO1-POE is a 7" S Series HMI Panel PC for machine control, factory automation and operator HMI. It features a 7" 1024 x 600 P-CAP multi-touch display, PoE support and optional modules including a 2MP front camera and HF RFID reader. The front panel is rated IP65. The unit is fanless, low-power and offers metal housing with panel/VESA mounting.


Key Features
  • 7" 1024 x 600 Resolution with Projected Capacitive Multi-Touch (P-CAP)
  • Supports PoE (PD: IEEE 802.3at, 25 W)
  • Optional 2MP front camera
  • Optional HF RFID reader (13.56 MHz)
  • Suitable for room booking, access control and room information applications
  • Front IP65 protection
  • Fanless cooling and ultralow power consumption


Product Details
  • Seamless P-Cap touch: 4-point multi-touch experience, responsive and durable for industrial use
  • Fanless design: heat sinks and vapor chambers for quiet, efficient thermal regulation
  • IP65 front protection: resists water splashes and dust at the front panel for reliable operation
  • Power over Ethernet (PoE): combines power and data over a single Ethernet cable to simplify installation and enable remote placement


Specifications
  • Model: W07MG3S-PCO1-POE
  • Display Size: 7.0 inches
  • Touch / Glass: Projected Capacitive Multi Touch Screen
  • Resolution: 1024 x 600
  • Panel Brightness: 1000 nits
  • Contrast Ratio: 700:1
  • View Angles: 75, 75, 75, 70
  • Active Area: 153.6 x 90 mm
  • Processor: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
  • Memory: 4 GB LPDDR4
  • Storage: Onboard 32 GB
  • Operating System: Android 13 (Default); optional Linux Yocto 5.15.47 with QT 5.15; optional Linux Ubuntu 22.04
  • WLAN: Support (Optional)
  • Bluetooth: Support (Optional)
  • RFID: HF RFID Reader 13.56 MHz (Optional)
  • Dimensions: 189.4 x 145.4 x 40 mm
  • Cut out (panel mount): 175.5 x 131.5 mm
  • Weight: 1.0 kg
  • Mounting: Panel mount; VESA mount
  • Enclosure: Metal Housing
  • Cooling System: Fanless design
  • Operating Humidity: 10% to 90% RH, Non-Condensing
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -20°C to 60°C
  • Shock: MIL-STD-810H Method 516.8 Procedure I
  • Vibration: MIL-STD-810H Method 514.8 Procedure I
  • IP Rating: Front IP65
  • Certifications: CE, FCC
  • USB Ports: 2 x USB 2.0 Type A; 1 x USB 2.0 Type C (OTG)
  • Serial Port: 1 x RS232/422/485 (Default RS232)
  • LAN: 1 x LAN 10/100/1000 Mbps
  • Video: 1 x Micro HDMI Output (Optional)
  • Audio: 1 x Speaker
  • SD Card Slot: 1 x Micro SD card slot
  • Accessories: 100~240V AC to DC Adapter; Power Cord; Terminal Block to 2.5Ø Female Adapter Cable; Open Wire Cable with terminal block connector; VESA screws
  • Power Rating: 12V DC with Terminal Block
  • Adapter: 12V 50W
  • PoE: PoE (PD) follows IEEE 802.3at (25 W)
  • Front Camera: 2MP (Optional)
