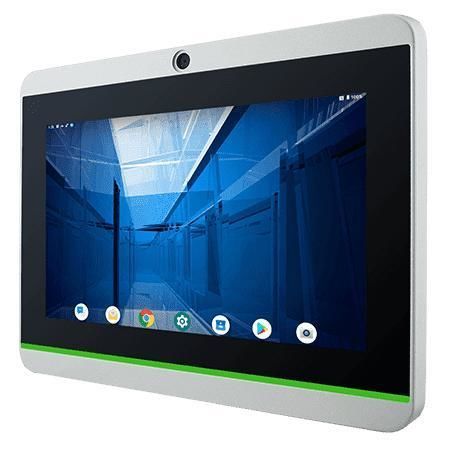

Multitouch screen panel PC W07MG3S-PCT1AC-POE

PCAP capacitive touch screen7"1024 x 600

Product Overview
Winmate W07MG3S-PCT1AC-POE is a 7-inch S Series HMI panel PC with an ARM A78 + A55 processor designed for machine control, factory automation and operator HMI. It features a fanless design, front IP65 protection, built-in RGB LED status light bar, PoE support (IEEE 802.3at PD 25 W) and optional 2 MP front camera and HF RFID reader (13.56 MHz), suitable for room booking terminals, access control and industrial operator interfaces.

Key Features

• 7.0" 1024 x 600 projected capacitive multi-touch (P-CAP), 4-point
• Built-in programmable RGB LED status light bar
• Power over Ethernet (PoE) support
• Optional 2 MP front camera and HF RFID reader (13.56 MHz)
• Front panel IP65 protection against dust and splashes
• Fanless thermal design for silent, low-power operation

Product Details

• Touch technology: Projected capacitive multi-touch for accurate 4-point interaction
• Cooling: Fanless design with heat sinks and vapor chamber for efficient thermal management
• Light bar: Programmable RGB LED for visual status indication
• PoE: Simplifies installation by delivering power and data over a single Ethernet cable (PoE PD follows IEEE 802.3at, 25 W)
• Rugged front: IP65-rated front bezel for protection in industrial environments
• Mounting: Panel mount and VESA mount options for flexible integration

Technical specifications

• Display - Size: 7.0 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen
• Display - Resolution: 1024 x 600
• Display - Brightness: 320.0 nits
• Display - Contrast Ratio: 1000:1
• Display - View Angles: 75, 75, 75, 70
• Display - Active Area: 153.6 x 90 mm
• System - Processor: ARM 2 x A78 2.0 GHz + 4 x A55 2.0 GHz
• System - Memory: 4 GB LPDDR4
• System - Storage: Onboard 32 GB
• System - Operating System: Android 13 (default); Linux Yocto 5.15.47 with QT 5.15 (optional); Ubuntu 22.04 (optional)
• System - WLAN: Support (optional)
• System - Bluetooth: Support (optional)
• System - RFID: HF RFID Reader 13.56 MHz (optional)
• System - Light Bar: Built-in RGB LED status light bar
• Mechanical - Dimension: 189.4 x 145.4 x 40 mm
• Mechanical - Cut out: 175.5 x 131.5 mm
• Mechanical - Weight: 1.0 kg
• Mechanical - Mounting: Panel mount; VESA mount
• Mechanical - Enclosure: Metal housing
• Mechanical - Cooling System: Fanless design
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -20°C to 60°C
• Environment - Shock: MIL-STD-810H Method 516.8 Procedure I
• Environment - Vibration: MIL-STD-810H Method 514.8 Procedure I
• Environment - IP rating: Front IP65
• Certification: CE, FCC
• IO Ports - USB: 2 x USB 2.0 Type A; 1 x USB 2.0 Type C (OTG)
• IO Ports - Serial: 1 x RS232/422/485 (default RS232)
• IO Ports - LAN: 1 x LAN 10/100/1000 Mbps
• IO Ports - Video: 1 x Micro HDMI output (optional)
• IO Ports - Audio: 1 x Speaker
• IO Ports - SD Card Slot: 1 x Micro SD card slot
• Accessory: 100~240V AC to DC adapter; power cord; terminal block to 2.5Ø female adapter cable; open wire cable with terminal block connector; VESA screws
• Power - Power Rating: 12V DC with terminal block
• Power - Adapter: 12V 50W
• Power - PoE: PoE (PD) follows IEEE 802.3at (25 W)
• Camera - Front Camera: 2 MP (optional)
