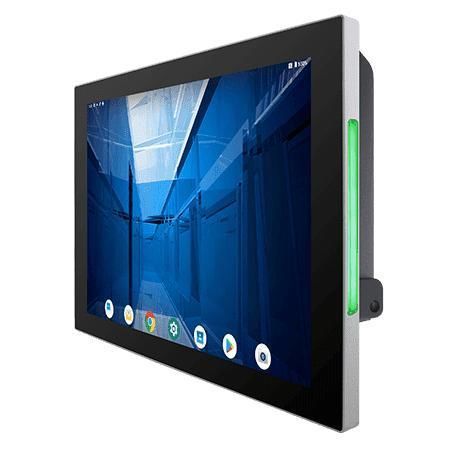

Multi-touch screen panel PC R15MG3S-PCC3AC-POE

touch screenPCAP capacitive touch screen15"

Overview
Winmate R15MG3S-PCC3AC-POE is a 15-inch S-Series HMI Panel PC designed for machine control, factory automation and operator interfaces. It integrates an ARM (2x A78 + 4x A55) processor, front IP65 protection, fanless cooling and a built-in RGB LED status light bar. PoE support and modular options simplify installation and system integration.

Key Features

• 15" 1024 x 768 with Projected Capacitive Multi-Touch (P-CAP)
• Built-in RGB LED status light bar (both sides)
• Power over Ethernet support (PoE PD, IEEE 802.3at, 25 W)
• Optional 2 MP front camera
• Optional HF RFID reader (13.56 MHz)
• Front panel IP65 (water and dust resistant)
• Fanless thermal design for silent, low-power operation

Product Highlights & Design

• Responsive 4-point multi-touch P-CAP touchscreen for operator interaction
• Fanless cooling using heat sinks and vapor chambers for reliable thermal management
• Programmable RGB light bar for visual status indication
• PoE reduces cabling by combining power and data over a single Ethernet link
• Default OS: Android 13; optional Linux Yocto or Ubuntu configurations available

Certifications

• CE
• FCC

Notes on Options

• Front camera: optional 2 MP module
• RFID: optional HF RFID reader (13.56 MHz)
• WLAN / Bluetooth: available as optional features
• Operating systems: Android 13 (default); Linux Yocto 5.15.47 with QT 5.15 (optional); Linux Ubuntu 22.04 (optional)

Technical specifications

• Model: R15MG3S-PCC3AC-POE
• Display size: 15.0 inches
• Touch / glass: Projected Capacitive Multi Touch Screen
• Resolution: 1024 x 768
• Panel brightness: 300 nits
• Contrast ratio: 2000:1
• View angles: 88,88,88,88
• Active area: 304.1 x 228.1 mm
• Processor: ARM 2 x A78 2.0 GHz + 4 x A55 2.0 GHz
• Memory: 4 GB LPDDR4
• Storage: Onboard 32 GB
• Operating system: Android 13 (default); Linux Yocto 5.15.47 with QT 5.15 (optional); Linux Ubuntu 22.04 (optional)
• WLAN: optional
• Bluetooth: optional
• RFID: HF RFID Reader 13.56 MHz (optional)
• Light bar: Built-in RGB LED status light bar on both sides
• Dimensions: 363.4 x 277.86 x 44.5 mm
• Cut out: 346.5 x 261 mm
• Weight: 3.6 kg
• Mounting: Panel mount; VESA mount
• Enclosure: Metal housing
• Cooling system: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 60°C
• Shock: MIL-STD-810H Method 516.8 Procedure I
• Vibration: MIL-STD-810H Method 514.8 Procedure I
• IP rating: Front IP65
• USB ports: 2 x USB 2.0 Type A; 1 x USB 2.0 Type C (OTG)
• Serial port: 1 x RS232/422/485 (default RS232)
• LAN: 1 x LAN 10/100/1000 Mbps
• Video: 1 x Micro HDMI output (optional)
• Audio: 2 x speaker
• SD card slot: 1 x Micro SD card slot
• Power rating: 12V DC with terminal block (default); 9~36V optional
• Adapter: 12V 50W
• PoE (PD): follows IEEE 802.3at (25 W)
• Front camera: 2 MP (optional)
• Accessories included / available: 100~240V AC to DC adapter; power cord; terminal block to 2.5Ø female adapter cable; open wire cable with terminal block connector; VESA screws
