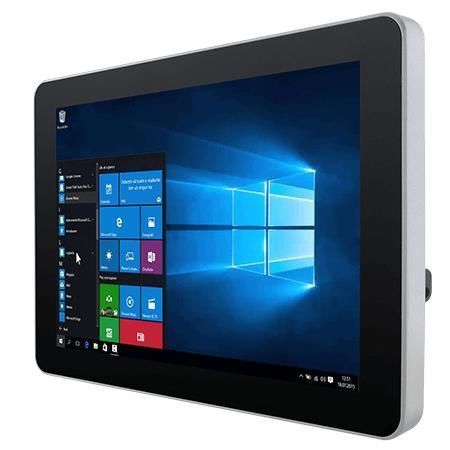

Multitouch screen panel PC W10IE3S-PCH2-POE

PCAP capacitive touch screen10.1"1280 x 800

Overview
The W10IE3S-PCH2-POE is a 10.1-inch S Series HMI panel PC designed for machine control, factory automation and operator interfaces. Powered by an Intel® Celeron® N6211 (Elkhart Lake), it delivers fanless operation, low power consumption, dual 2.5 Gigabit Ethernet (one PoE-capable), a front IP65 rating and optional front camera and HF RFID reader — suitable for industrial applications requiring compact, mountable HMI solutions.

Key features

• 10.1-inch 1280 x 800 projected capacitive (PCAP) multi-touch display (350 nits)
• Intel® Celeron® N6211 processor
• Fanless cooling and ultra-low power consumption
• Dual 2.5 Gigabit Ethernet with one PoE PD port (IEEE 802.3at, 25 W)
• Front IP65 protection against dust and splashes
• Optional 2 MP front camera and HF RFID 13.56 MHz reader
• Multiple OS support and flexible memory/storage configurations

Product highlights

• Power over Ethernet (PoE): PoE PD (IEEE 802.3at, 25 W) enables combined data and power over a single cable for simplified installation and centralized power management.
• Slim, serviceable design: Flat front surface and slim profile for easy cleaning, maintenance and integration in operator panels or kiosks.
• P-Cap touchscreen: Projected capacitive glass with 4-point multi-touch offering scratch resistance and accurate finger operation.
• Front IP65: Sealed front bezel for protection in dusty or splash-prone environments.

Certifications

• Front IP65
• CE
• FCC

Technical specifications

• Display
  • Size: 10.1 inches
  • Touch / Glass: Projected Capacitive Multi Touch Screen
  • Resolution: 1280 x 800
  • Panel Brightness: 350 nits
  • Contrast Ratio: 800:1
  • View Angles: 85 / 85 / 85 / 85
  • Active Area: 216.96 x 135.6 mm
• System
  • Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
  • Memory: 4 GB (default); 8 GB / 16 GB (optional)
  • Storage: 128 GB SSD (default); up to 2 TB optional
  • Ethernet controller: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN)
  • Security: TPM 2.0
  • OS options: Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise, Linux Ubuntu 22.04 (optional)
  • WLAN / Bluetooth: optional
  • RFID: HF 13.56 MHz (optional)
• Mechanical
  • Dimensions: 264.57 x 173.29 x 35.7 mm
  • Cut out: 250 x 159 mm
  • Weight: 1.2 kg
  • Mounting: Wall mount (default); VESA mount (optional)
  • Enclosure: Plastic front bezel with metal back cover
  • Cooling: Fanless
• Environment
  • Operating humidity: 10% to 90% RH, non-condensing
  • Operating temperature: 0°C to 50°C
  • Storage temperature: -10°C to 60°C
  • IP rating: Front IP65
• IO ports
  • USB: 2 x USB 3.2 Gen1x1 (Type-A)
  • Serial: 1 x RS232/422/485 (default RS232)
  • LAN: 2 x 2.5 Giga LAN RJ45 (one with PoE PD, IEEE 802.3at, 25 W)
  • Audio: 1 x Speaker
  • Expansion: 1 x M.2 2242 B-key (SATA III SSD); 1 x M.2 2230 E-key (Wi‑Fi)
  • Power input: 1 x 12V DC, 3-pin terminal block
• Accessories & power
  • Included: 100~240V AC to DC adapter, power cord, terminal block adapters, VESA screws
  • Optional: VESA desk stand, wall mount kits, glass wall mount kits
  • Power rating: 12V DC; adapter 12V 50W; PoE PD follows IEEE 802.3at (25 W)
