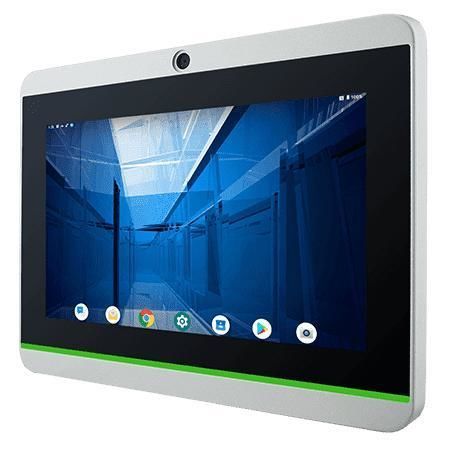

Multitouch screen panel PC W07MG3S-PCO1AC-POE

LCDPCAP capacitive touch screen1000 nits

Overview
Winmate W07MG3S-PCO1AC-POE is a 7-inch S Series HMI Panel PC with ARM A78 + A55 processor designed for machine control, factory automation and operator HMI. It targets industrial buyers, OEMs and system integrators requiring reliable hardware for rugged, embedded and mission‑critical environments. Key system options include PoE support, optional 2MP front camera and optional HF RFID reader.

Key Features

• 7" 1024 x 600 resolution with Projected Capacitive multi-touch (P-CAP)
• Built-in RGB LED status light bar
• Power over Ethernet (PoE) support (PD, IEEE 802.3at, 25 W)
• Optional 2MP front camera
• Optional HF RFID/NFC reader (13.56 MHz)
• Front panel rated IP65 (water and dust proof)
• Fanless cooling for silent, low-maintenance operation

Product Details
The S-Series integrates a responsive 4-point P-CAP touchscreen suitable for operator interfaces and control panels. Fanless thermal design with heat sinks and vapor chamber ensures quiet, reliable temperature management. The programmable RGB LED light bar provides visual status feedback. Optional HF RFID/NFC and a 2MP front camera enable access control, room booking and identification workflows. Front IP65 sealing supports operation in splash-prone or dusty locations. PoE simplifies installation by delivering power and data over a single Ethernet cable, reducing cabling and enabling flexible device placement.

Certifications

• CE
• FCC

Technical specifications

• Display: 7.0 inches; Projected Capacitive Multi Touch Screen; 1024 x 600; Panel Brightness: 1000 nits; Contrast Ratio: 700:1; View Angles: 75,75,75,70; Active Area: 153.6 x 90 mm
• Processor: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
• Memory: 4 GB LPDDR4
• Storage: Onboard 32 GB
• Operating System: Android 13 (default); Linux Yocto 5.15.47 with QT 5.15 (optional); Ubuntu 22.04 (optional)
• WLAN / Bluetooth: optional support
• RFID: HF RFID Reader 13.56 MHz (optional)
• Light Bar: Built-in RGB LED Status Light Bar
• Mechanical: 189.4 x 145.4 x 40 mm; Cut out: 175.5 x 131.5 mm; Weight: 1.0 kg; Panel mount / VESA mount; Metal housing
• Cooling: Fanless design (heat sinks and vapor chamber)
• Environment: Operating humidity: 10% to 90% RH non-condensing; Operating temperature: 0°C to 50°C; Storage temperature: -20°C to 60°C; Shock: MIL-STD-810H Method 516.8 Procedure I; Vibration: MIL-STD-810H Method 514.8 Procedure I; Front IP65
• IO Ports: 2 x USB 2.0 Type A; 1 x USB 2.0 Type C (OTG); 1 x RS232/422/485 (default RS232); 1 x LAN 10/100/1000 Mbps; 1 x Micro HDMI output (optional); 1 x Speaker; 1 x Micro SD card slot
• Power: 12V DC via terminal block; Adapter: 12V 50W; PoE (PD) IEEE 802.3at (25 W)
• Camera: 2MP front camera (optional)
• Accessories: 100~240V AC to DC adapter; power cord; terminal block to 2.5Ø female adapter cable; open wire cable with terminal block connector; VESA screws
