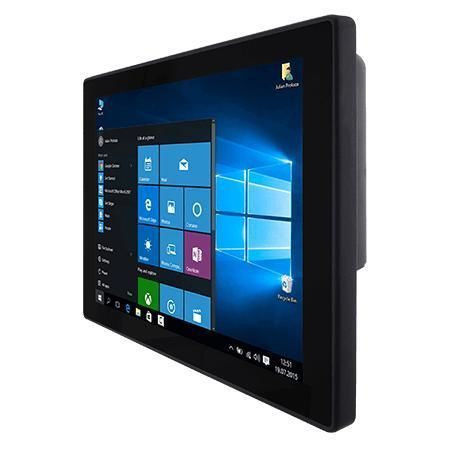

PCAP capacitive touch screen panel PC R12IP3S-PCM2-POE

multi-touch screen12.1"1024 x 768

Overview
The R12IP3S-PCM2-POE is a 12.1-inch HMI panel PC designed for machine control, factory automation and operator interfaces. It integrates a projected-capacitive multi-touch display, Intel® Pentium® N4200 processor, fanless cooling and optional PoE power delivery (PD, IEEE 802.3at). The front bezel is rated IP65 for dust and splash protection.

Key features

• 12.1-inch 1024 x 768 PCAP multi-touch display, 500 nits
• Intel® Pentium® N4200 processor (1.1 GHz, up to 2.5 GHz)
• Fanless thermal design and low power consumption
• PoE PD support (IEEE 802.3at, 25 W) on one LAN port
• Optional 2 MP front camera and HF RFID reader (13.56 MHz)
• Front protection: IP65
• TPM 2.0 security

PoE and installation
PoE PD capability combines data and power on a single cable to simplify wiring and enable centralized power management. This reduces installation points and is well suited for access control, building automation and distributed HMI deployments.

Design and touch
The S-series chassis offers a slim, true-flat front for easy cleaning. The glass-covered projected-capacitive touch supports multi-touch for finger operation and provides scratch resistance for frequent use.

Certifications

• CE
• FCC

Display

• Size: 12.1-inch
• Type: Projected Capacitive Multi-Touch (PCAP)
• Resolution: 1024 x 768
• Brightness: 500 nits
• Contrast ratio: 1000:1
• Active area: 245.76 x 184.32 mm

System specification

• Processor: Intel® Pentium® N4200 (1.1 GHz, up to 2.5 GHz)
• Memory: 4 GB DDR3L (default), 8 GB optional
• Storage: 128 GB SSD (default); options: 256/512 GB or 1 TB
• Ethernet: 2 x Intel® controllers, 2 x 2.5 Giga LAN (one PoE-capable)
• Security: TPM 2.0
• OS options: Windows 10 IoT Enterprise (64-bit) or Linux Ubuntu (optional)
• Wireless: optional M.2 2230 E-Key for WLAN/Bluetooth

Mechanical

• Dimensions: 296 x 227 x 46 mm
• Cut out: 282 x 207 mm
• Weight: 3.0 kg
• Mounting: panel/wall mount (default); VESA optional
• Enclosure: metal housing

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Front IP rating: IP65

IO ports

• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 2 x 2.5 Giga LAN RJ45 (one with PoE PD, IEEE 802.3at, 25 W)
• Video: HDMI 1.4 (optional)
• Audio: 2 x speaker
• Expansion: M.2 2242 B-key (SSD), M.2 2230 E-key (Wi-Fi)
• Power input: 1 x 12V DC, 3-pin terminal block

Power & accessories

• Power rating: 12V DC (9~36V optional)
• Adapter: 12V 50W
• Included accessories: 100–240V AC to DC adapter, power cord, terminal block adapter cables, VESA screws
• Optional: VESA desk stand (ref. 9B0000000412)

Technical specifications

• Model: R12IP3S-PCM2-POE
• Display: 12.1-inch PCAP, 1024 x 768, 500 nits
• Processor: Intel® Pentium® N4200
• Memory/Storage: 4 GB / 128 GB SSD default (expandable)
• Ethernet: dual 2.5 Giga LAN with PoE support on one port
• Front protection: IP65
• Certifications: CE, FCC
