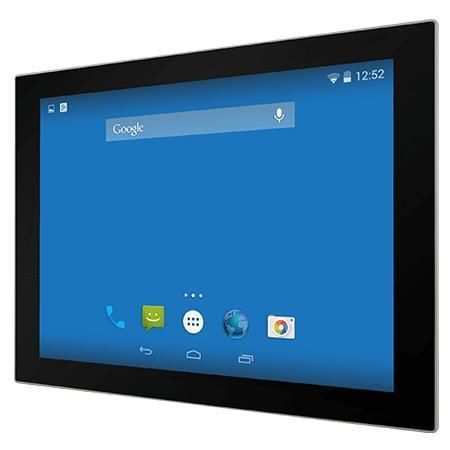

LCD panel PC R15FA3S-PCC3-POE

multitouch screenTFT LCDPCAP capacitive touch screen

Product overview
Winmate R15FA3S-PCC3-POE is a 15.0" S-Series HMI Panel PC based on NXP i.MX6, intended for machine control, factory automation and operator HMI. It features a 15.0" 1024 x 768 TFT with projected-capacitive multi-touch (PCAP), fanless low-power design, onboard eMMC storage and Power over Ethernet (PoE) PD support (IEEE 802.3at, up to 25 W).

Key features

• 15.0" 1024 x 768 TFT LCD with projected-capacitive multi-touch (PCAP)
• NXP i.MX6 Dual Core 1.0 GHz (Quad Core optional)
• Fanless design with ultra-low power consumption
• Onboard LPDDR3 1 GB (optional 2 GB)
• Onboard eMMC 16 GB (optional 32 GB)
• Supports PoE IEEE 802.3at (PD, up to 25 W)
• Optional HF RFID reader (13.56 MHz)
• Front panel rated IP65 for dust and splash protection

Certifications

• CE
• FCC

Product highlights

• Power over Ethernet: combines data and power on a single cable to simplify installation and centralize power management for access control and industrial automation.
• Slim S‑Series: significantly thinner than traditional panel PCs with a flat front surface to facilitate cleaning and maintenance.
• P‑Cap touch: glass cover lens improves scratch resistance and supports 4‑point multi‑touch for reliable operator input.
• Front IP65: sealed front to protect against dust ingress and water splashes in industrial settings.

Technical specifications

• Display - Size: 15.0 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Display - Resolution: 1024 x 768
• Display - Panel Brightness: 300 nits
• Display - Contrast Ratio: 2000:1
• Display - View Angles: 88/88/88/88
• Display - Active Area: 304.1 x 228.1 mm
• System - Processor: NXP i.MX6 Dual Core 1.0 GHz (Quad Core optional)
• System - Memory: 1 GB LPDDR3 (default); 2 GB optional
• System - Storage: Onboard eMMC 16 GB (default); 32 GB optional
• System - Operating System: Linux Ubuntu 18.04 (optional); Android 6.0 (optional); Debian 7.0 (optional); Linux 4.1.15 QT 5.5 (optional)
• System - WLAN / Bluetooth: optional support
• System - RFID: HF RFID reader 13.56 MHz (optional)
• Mechanical - Dimension: 363.4 x 277.86 x 45.2 mm
• Mechanical - Cut out: 346.5 x 261 mm
• Mechanical - Weight: 3.5 kg
• Mechanical - Mounting: Panel mount (default); VESA mount optional
• Mechanical - Enclosure: Metal housing
• Mechanical - Cooling System: Fanless design
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -20°C to 60°C
• Environment - IP rating: Front IP65
• Certifications: CE, FCC
• IO Ports - USB: 1 x Console Port (Mini USB); 1 x USB OTG; 1 x USB 2.0 (Type-A)
• IO Ports - Serial: 1 x RS232/422/485 (default RS232)
• IO Ports - LAN: 1 x RJ45 with PoE (PD, IEEE 802.3at)
• IO Ports - Video: 1 x Micro HDMI (optional)
• IO Ports - Audio: 1 x Speaker
• IO Ports - SD Card: 1 x Micro SD card slot
• IO Ports - Expansion: 1 x mPCIe slot (for half-size Wi‑Fi module)
• IO Ports - CANBUS: 1 x CANBUS, D-sub9
• Power - Power Input: 1 x 12V DC, 2-pin terminal block
• Power - Power Rating: 12V DC; Adapter 12V 50W
• Power - PoE: PoE (PD) follows IEEE 802.3at (up to 25 W)
• Accessories Included: 100~240V AC to DC adapter; power cord; terminal block to 2.5Ø female adapter cable; open wire cable with terminal block connector; VESA screws; driver CD & manual
• Optional Accessories: VESA desk stand (9B0000000412); front side wall mount kit (99K000A00006)
