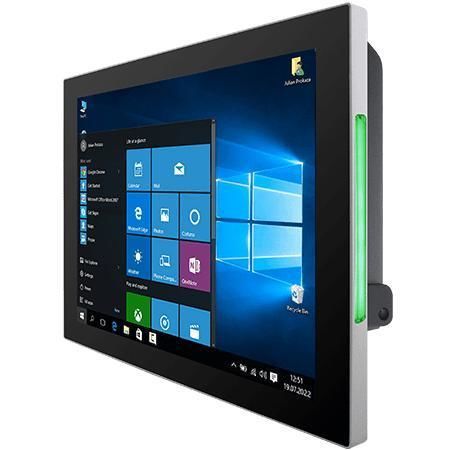

Multitouch screen panel PC R15IE3S-PCC3AC-POE

touch screenPCAP capacitive touch screen15"

Product Overview
Winmate R15IE3S-PCC3AC-POE is a 15" S Series HMI Panel PC with Intel® Celeron® N6211 Processor, designed for machine control, factory automation and operator HMI. It delivers a 15" 1024x768 PCAP multi-touch display, fanless thermal design for quiet low-power operation, Dual 2.5 Gigabit Ethernet, built-in RGB LED light bars, front IP65 protection and optional front camera and HF RFID reader.

Key Features

• 15" 1024 x 768 300 nits panel with projected capacitive (PCAP) multi-touch
• Intel® Celeron® Elkhart Lake N6211 processor (up to 3.0 GHz)
• Fanless cooling and ultra-low power consumption
• Dual 2.5 Gigabit Ethernet (one port supports PoE PD, IEEE 802.3at, 25 W)
• Integrated RGB LED light bars on both sides
• Front panel protection IP65
• Optional 2 MP front camera and HF RFID reader (13.56 MHz)
• Supports PoE function for simplified installations

Overview / Design Highlights

• PCAP touchscreen with 4-point multi-touch for intuitive finger operation.
• Fanless thermal architecture using heatsinks and vapor chambers for silent, maintenance-free operation.
• Programmable RGB LED status light bars for visual indication of system states.
• Front IP65 rating to protect against water splashes and dust ingress in industrial settings.
• PoE support (PD, IEEE 802.3at, 25 W) to combine power and data over a single Ethernet cable.

Specifications

• Display - Size: 15.0 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen
• Display - Resolution: 1024 x 768
• Display - Panel Brightness: 300.0 nits
• Display - Contrast Ratio: 2000:1
• Display - View Angles: 88, 88, 88, 88
• Display - Active Area: 304.1 x 228.1 mm
• System - Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• System - Memory: 4 GB (Default); 8 GB, 16 GB (Optional)
• System - Storage: 128 GB SSD (Default); 256 GB, 512 GB, 1 TB, 2 TB (Optional)
• System - Ethernet controller: 2 x Intel® Ethernet Controller
• System - Security: TPM 2.0
• System - Operating System: Windows 11 IoT Enterprise (64-bit) (Optional); Windows 11 Pro 64-bit (Optional); Windows 10 IoT Enterprise (64-bit) (Optional); Linux Ubuntu 22.04 (Optional)
• System - WLAN / Bluetooth: Support (Optional, M.2 2230 E-Key)
• System - RFID: HF RFID Reader 13.56 MHz (Optional)
• System - Light Bar: Built-in RGB LED Status Light Bar on both sides
• Mechanical - Dimension: 363.4 x 277.86 x 45.2 mm
• Mechanical - Cut out: 346.5 x 261 mm
• Mechanical - Weight: 3.5 kg
• Mechanical - Mounting: Wall mount (Default); VESA mount (Optional)
• Mechanical - Enclosure: Metal housing
• Mechanical - Cooling System: Fanless design
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0 °C to 50 °C
• Environment - Storage Temperature: -10 °C to 60 °C
• Environment - IP rating: Front IP65
• Certification: CE, FCC
• IO Ports - USB Port: 2 x USB 3.2 Gen1x1 (Type-A)
• IO Ports - Serial Port: 1 x RS232/422/485 (Default RS232)
• IO Ports - LAN: 2 x 2.5 Giga LAN RJ45 connectors; one with PoE (PD, IEEE 802.3at, 25 W) (Optional)
• IO Ports - Audio: 2 x Speaker
• IO Ports - Expansion Port: 1 x M.2 2242 B-key slot (for SATA III SSD); 1 x M.2 2230 E-Key slot (for Wi‑Fi module)
• Power - Power Input: 1 x 12 V DC, 3-pin terminal block
• Power - Power Rating: 12 V DC
• Power - Adapter: 12 V 50 W (included as adapter option)
• Power - PoE: PoE (PD) follows IEEE 802.3at (25 W)
• Accessory (included): 100~240 V AC to DC adapter; Power cord; Terminal block to 2.5Ø female adapter cable; Open wire cable with terminal block connector; VESA screws
• Accessory (optional): VESA Desk Stand (9B0000000412); Front Side Wall Mount Kit (99K000A00006)
