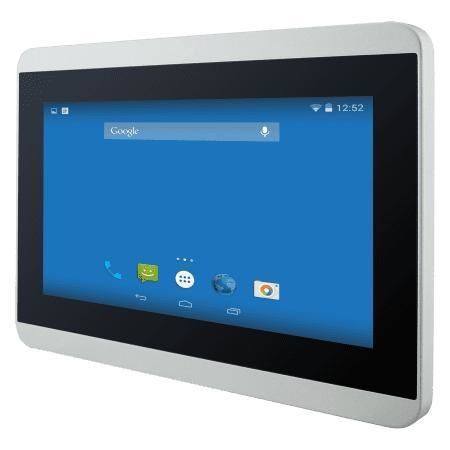

Multi-touch screen panel PC W07FA3S-PCT1-POE

PCAP capacitive touch screen7"1024 x 600

Overview
Winmate W07FA3S-PCT1-POE is a 7" NXP i.MX6 S-Series HMI Panel PC engineered for machine control, factory automation and operator HMI tasks. It integrates a 7" 1024 x 600 projected capacitive multi-touch display, fanless thermal design, Power over Ethernet (PoE) PD support and front IP65 protection. Optional modules include a 2MP front camera and HF RFID reader for access control and room-information applications.

Key Features

• 7" 1024 x 600 resolution with projected capacitive multi-touch (PCAP)
• Fanless design for low power consumption and silent operation
• Power over Ethernet (PoE, PD, IEEE 802.3at) support
• Optional 2MP front camera and HF RFID reader (13.56 MHz)
• Front panel protection IP65 suitable for dusty or splash-prone environments
• Compact slim profile for panel or VESA mounting in control cabinets or room terminals

Benefits

• PoE simplifies installation by delivering data and power over a single cable, easing deployment in access control and distributed automation
• PCAP touch with glass cover lens provides scratch resistance and multi-touch control for improved operator interaction
• Fanless, metal housing and front IP65 increase reliability in industrial conditions

Certifications

• CE
• FCC

Technical specifications

• Display: 7.0 inches; Touch/Glass: Projected Capacitive Multi-Touch; Resolution: 1024 x 600; Brightness: 320 nits; Contrast Ratio: 1000:1; View Angles: 75/75/75/70; Active Area: 153.6 x 90 mm
• System: Processor: NXP i.MX6 Dual Core 1.0 GHz; Memory: 1 GB default, 2 GB optional; Storage: eMMC 16 GB default, 32 GB optional; OS: Linux Ubuntu 18.04 / Android 6.0 / Debian 7.0 / Linux 4.1.15 QT 5.5 (options)
• Mechanical: Dimensions: 189.4 x 145.4 x 39.8 mm; Cut-out: 175.5 x 131.5 mm; Weight: ~1.0 kg; Mounting: Panel/wall default, VESA optional; Enclosure: Metal housing
• Environment: Operating Humidity: 10%–90% RH non-condensing; Operating Temp: 0°C to 50°C; Storage Temp: -10°C to 60°C; Front IP rating: IP65
• IO Ports: 1 x Console (Mini USB), 1 x USB OTG, 1 x USB2.0 Type-A, 1 x RS232/422/485 (default RS232), 1 x LAN RJ45 with PoE (PD, IEEE 802.3at), 1 x Micro HDMI (optional), 1 x Speaker, 1 x Micro SD slot, 1 x mPCIe (half-size), 1 x CANBUS D-sub9
• Power: Input: 12V DC (2-pin terminal); Adapter: 12V 50W; PoE PD follows IEEE 802.3at (25 W)
• Accessories: Supplied: 100~240V AC to DC adapter, power cord, terminal block adapter cables, VESA screws; Optional: VESA desk stand, front side wall mount kit, VESA bracket mounting kit
