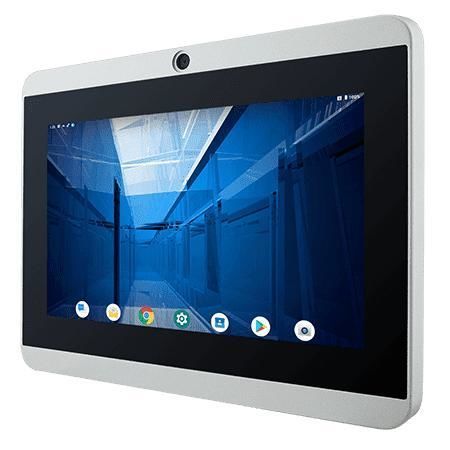

Multitouch screen panel PC W07MG3S-PCT1-POE

PCAP capacitive touch screen7"1024 x 600

Product overview
Winmate W07MG3S-PCT1-POE is a 7" S Series industrial HMI panel PC designed for machine control, factory automation and operator interfaces. It integrates an ARM CPU (2x A78 + 4x A55), 4 GB LPDDR4, 32 GB onboard storage and supports Android 13 by default with optional Linux configurations. Front IP65 protection, fanless cooling and PoE power make it suitable for harsh industrial and commercial installations.

Key features

• 7" 1024 x 600 display with projected capacitive multi-touch (P-CAP)
• PoE (PD) support following IEEE 802.3at (25 W)
• Optional 2 MP front camera
• Optional HF RFID reader (13.56 MHz)
• Front panel IP65 water and dust protection
• Fanless thermal design for silent operation
• Panel mount and VESA mounting options; metal housing

Operational highlights
P-CAP touchscreen delivers responsive 4-point multi-touch interaction for operator panels and human-machine interfaces.

Fanless cooling (heat sinks/vapor chambers) ensures low noise and reliable thermal management for continuous industrial operation.

Front IP65 rating protects against splashes and dust, increasing uptime in demanding environments.

PoE capability supplies power and network over a single Ethernet cable, simplifying wiring and enabling flexible remote placement.

Technical specifications

• Display: 7.0 inches, 1024 x 600, 320 nits, 1000:1 contrast
• Touch / Glass: Projected capacitive multi-touch
• Active area: 153.6 x 90 mm
• Processor: ARM 2 x A78 2.0 GHz + 4 x A55 2.0 GHz
• Memory: 4 GB LPDDR4
• Storage: Onboard 32 GB
• OS: Android 13 (default); Linux Yocto / Ubuntu optional
• Wireless: WLAN / Bluetooth supported (optional)
• RFID: HF 13.56 MHz (optional)
• Dimensions: 189.4 x 145.4 x 40 mm — Cut out: 175.5 x 131.5 mm
• Weight: 1.0 kg
• Mounting: Panel mount; VESA mount
• Enclosure: Metal housing
• Operating humidity: 10%–90% RH (non-condensing)
• Operating temperature: 0°C to 50°C — Storage: -20°C to 60°C
• Shock/Vibration: MIL-STD-810H compliant
• IP rating: Front IP65
• Certifications: CE, FCC
• IO: 2 x USB 2.0 Type A; 1 x USB 2.0 Type C (OTG); 1 x RS232/422/485; 1 x LAN 10/100/1000 Mbps; 1 x Micro HDMI (optional); 1 x Micro SD slot; 1 x Speaker
• Power: 12V DC via terminal block; adapter 12V 50W; PoE (PD) IEEE 802.3at (25 W)
• Accessories: AC adapter 100~240 V, power cord, terminal block adapter cable, open wire cable with terminal block connector, VESA screws
• Optional: 2 MP front camera
