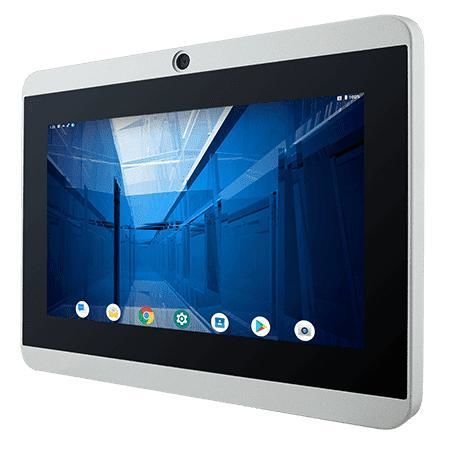

Multitouch screen panel PC W07IM3S-PCO1-POE

PCAP capacitive touch screen1000 nits7"

Short description
W07IM3S-PCO1-POE is a 7.0" ARM A53 S-series HMI Panel PC engineered for machine control, factory automation and operator HMI applications. It features a 1024×600 projected capacitive multi-touch (P-CAP) display, fanless cooling, Power over Ethernet (PoE) capability and front IP65 sealing for industrial and commercial environments.

Key features

• 7.0" 1024×600 P-CAP multi-touch display (4-point)
• Fanless design for silent, low-maintenance operation
• Power over Ethernet (PD follows IEEE 802.3at, 25 W)
• Optional 2 MP front camera and optional HF RFID reader (13.56 MHz)
• Front panel sealed to IP65 (dust and water splash protection)
• Supports Android (default) or optional Linux distributions

Overview / Highlights
PoE integration combines data and power in a single cable to simplify installation and reduce cabling complexity—beneficial for access control, room booking terminals and distributed HMI deployments. The S-series profile is thinner than conventional panel PCs and offers a flat glass front for easy cleaning. The P-CAP glass lens is scratch-resistant and supports multi-touch input for improved operator interaction. Front IP65 sealing protects against dust ingress and water splashes in demanding environments.

Certifications

• CE
• FCC

Applications
Machine control, factory automation, operator HMI, access control panels, room booking/room information terminals and compact industrial/commercial HMI installations requiring PoE and front IP65 protection.

Technical specifications

• Display — Size: 7.0 inches; Resolution: 1024×600; Touch/Glass: Projected Capacitive Multi-Touch; Brightness: 1000 nits; Contrast Ratio: 700:1; View Angles: 75/75/75/70; Active Area: 153.6 × 90 mm
• System — Processor: ARM A53 (Quad Core 2.0 GHz); Memory: 4 GB LPDDR4; Storage: 32 GB eMMC onboard; OS: Android 11 (default, upgradable to Android 13); optional Linux Yocto 5.15.47 with Qt 5.15; optional Ubuntu Server 22.04
• Connectivity — WLAN: optional; Bluetooth: optional; LAN: 1 × 10/100/1000 Mbps
• Optional — HF RFID Reader 13.56 MHz; Front camera 2 MP
• Mechanical — Dimensions: 189.4 × 145.4 × 40 mm; Cut-out: 175.5 × 131.5 mm; Weight: 1.0 kg; Mounting: Panel mount & VESA mount; Enclosure: Metal housing
• Cooling — Fanless design
• Environment — Operating humidity: 10%–90% RH non-condensing; Operating temperature: 0°C to 50°C; Storage temperature: -20°C to 60°C; Shock/Vibration: MIL-STD-810H
• IP rating — Front: IP65
• IO Ports — USB: 2 × USB 2.0 Type A; 1 × Micro USB 2.0 OTG; Serial: 1 × RS232/422/485 (default RS232); Video: 1 × Micro HDMI output (optional); Audio: 1 × Speaker; SD: Micro SD slot (max 32 GB)
• Power — Nominal: 12 V DC (terminal block); Adapter: 12 V 50 W; PoE (PD): IEEE 802.3at (25 W)
• Accessories — 100–240 V AC to DC adapter; power cord; terminal block to 2.5Ø female adapter cable; open wire cable with terminal block connector; VESA screws
