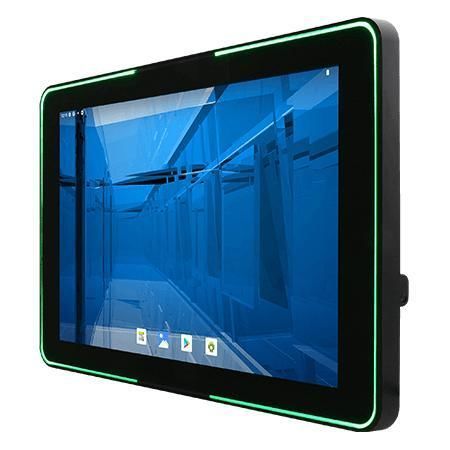

Panel PC with touch screen W10IM3S-PCH2LB-PoE

multi-touch screenPCAP capacitive touch screen10.1"

Overview

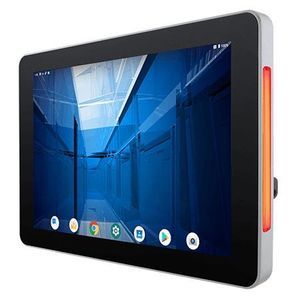

Winmate W10IM3S-PCH2LB-PoE is a 10.1-inch ARM A53 S Series HMI Panel PC for machine control, factory automation and operator HMI. It features a 1280×800 projected capacitive multi-touch display, Power over Ethernet (PoE) support, and an integrated all-around RGB LED status light bar. Optional HF RFID (13.56 MHz) and support for Android or Linux make it suitable for access control, room booking and industrial HMI deployments.

Key Features

• 10.1-inch 1280×800 resolution with projected capacitive multi-touch (P‑CAP)
• Power over Ethernet support (PD IEEE 802.3at, 25 W)
• Built-in all-around RGB LED status light bar for 360° visibility
• Optional HF RFID reader (13.56 MHz)
• Slim, true-flat front design for easy cleaning and public-facing applications
• Supports Android (default) or Linux (optional)

Design & Connectivity
The S Series provides a slim, edge-free flat front for improved aesthetics and maintenance. PoE enables combined data and power over a single cable to simplify installations and centralize power management. The integrated light bar offers visual status feedback while minimizing display usage. Optional HF RFID adds secure access and identification capabilities.

Ruggedness & Environment
Front panel is IP65 rated for dust and splash protection. The unit meets MIL‑STD‑810H criteria for shock and vibration (see technical specs), enabling reliable operation in demanding industrial conditions.

Certifications

• Front IP65
• MIL‑STD‑810H
• FCC
• CE

Technical specifications

• Display — Size: 10.1 inches; Touch/Glass: Projected Capacitive Multi Touch; Resolution: 1280×800; Brightness: 350 nits; Contrast: 800:1; Viewing Angles: 85/85/85/85; Active Area: 216.96×135.6 mm
• System — Processor: ARM A53 (Quad Core 2.0 GHz); Memory: 4 GB LPDDR4; Storage: 32 GB eMMC onboard; OS: Android 11 (default, upgradable to Android 13); Linux Yocto 5.15.47 with QT 5.15 and Ubuntu Server 22.04 (optional)
• Connectivity — LAN: 1×RJ45 10/100/1000 Mbps; USB: 2×USB 2.0 Type-A, 1×Micro USB 2.0 OTG; Serial: 1×RS232/422/485 (default RS232); Video: 1×Micro HDMI (optional); SD: 1×Micro SD (max 32 GB); Audio: 1×Speaker
• Mechanical — Dimensions: 265×173×38 mm; Cut out: 250×159 mm; Weight: 1.2 kg; Mounting: Panel mount and VESA; Enclosure: Plastic front bezel with metal back cover; Cooling: Fanless
• Environment — Operating humidity: 10%–90% RH non‑condensing; Operating temp: 0°C–50°C; Storage temp: -20°C–60°C; Shock/Vibration: MIL‑STD‑810H methods
• Power & Accessories — Power: 12V DC terminal block (default), optional 9–36V; Adapter: 12V 50W; PoE (PD): IEEE 802.3at (25 W); Accessories: AC‑DC adapter, power cord, terminal block adapter cable, open wire cable, VESA screws
