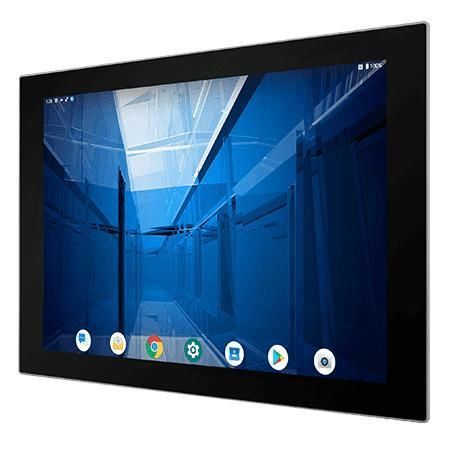

Multitouch screen panel PC R15MG3S-PCC3-POE

touch screenPCAP capacitive touch screen15"

Overview
The R15MG3S-PCC3-POE is a 15-inch S Series HMI Panel PC with ARM A78 + A55 processor designed for machine control, factory automation and operator HMI. It supports projected capacitive multi-touch (P-CAP), fanless operation and long lifecycle availability, with optional front camera and HF RFID for access control and room booking applications.

Key features

• 15" 1024 x 768 display with Projected Capacitive Multi-Touch (P-CAP)
• Power over Ethernet (PoE) PD support per IEEE 802.3at (25 W)
• Optional 2 MP front camera
• Optional HF RFID reader 13.56 MHz
• Front IP65 protection against water and dust
• Fanless cooling and ultralow power consumption

Seamless connectivity with P-Cap touch screens
P-Cap touchscreen enables 4-point multi-touch gestures with high responsiveness, vivid clarity and durability suitable for industrial environments and operator interfaces.

Fanless design for quiet operation
Fanless cooling using heat sinks and vapor chambers provides effective temperature management and low acoustic signature for industrial panel deployments.

Front IP65 protection
The front panel is rated IP65 to resist water splashes and dust, ensuring continuous operation in harsh or splash-prone environments.

Power over Ethernet (PoE)
PoE PD support simplifies installation by combining power and data over a single Ethernet cable (IEEE 802.3at, 25 W), allowing flexible and remote placements for industrial applications.

Certifications

• CE
• FCC

Technical specifications

• Display Size: 15.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1024 x 768
• Panel Brightness: 300 nits
• Contrast Ratio: 2000:1
• View Angles: 88,88,88,88
• Active Area: 304.1 x 228.1 mm
• Processor: ARM 2 x A78 2.0 GHz + 4 x A55 2.0 GHz
• Memory: 4 GB LPDDR4
• Storage: Onboard 32 GB
• Operating System: Android 13 (Default); Linux Yocto 5.15.47 with QT 5.15 (Optional); Linux Ubuntu 22.04 (Optional)
• WLAN: Optional
• BT: Optional
• RFID: HF RFID Reader 13.56 MHz (Optional)
• Dimension: 363.4 x 277.86 x 44.5 mm
• Cut out: 346.5 x 261 mm
• Weight: 3.6 kg
• Mounting: Panel mount; VESA mount
• Enclosure: Metal housing
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Shock: MIL-STD-810H Method 516.8 Procedure I
• Vibration: MIL-STD-810H Method 514.8 Procedure I
• IP rating: Front IP65
• Certification: CE, FCC
• USB Port: 2 x USB 2.0 Type A; 1 x USB 2.0 Type C (OTG)
• Serial Port: 1 x RS232/422/485 (Default RS232)
• LAN: 1 x LAN 10/100/1000 Mbps
• Video: 1 x Micro HDMI Output (Optional)
• Audio: 2 x Speaker
• SD Card Slot: 1 x Micro SD card slot
• Accessories: 100~240V AC to DC Adapter; Power Cord; Terminal Block to 2.5Ø Female Adapter Cable; Open Wire Cable with terminal block connector; VESA screws
• Power Rating: 12 V DC with Terminal Block (Default); 9~36 V (Optional)
• Adapter: 12 V 50 W
• PoE: PoE (PD) follows IEEE 802.3at (25 W)
• Front Camera: 2 MP Camera (Optional)
