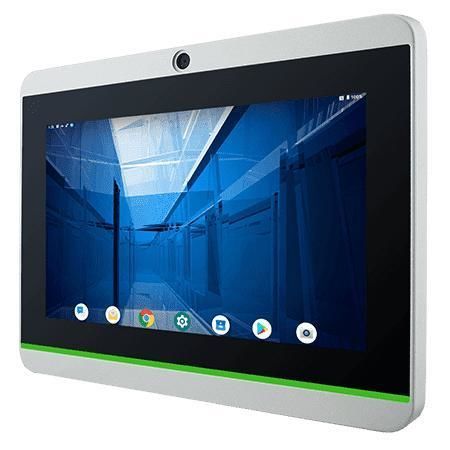

Multi-touch screen panel PC W07IM3S-PCO1AC-POE

PCAP capacitive touch screen7"1024 x 600

Overview
Winmate W07IM3S-PCO1AC-POE is a 7-inch S Series HMI Panel PC based on an ARM A53 processor, engineered for machine control, factory automation and operator HMI applications. It targets industrial integrators and OEMs needing a fanless, low-power, long-lifecycle panel with PoE and field-expandable options.

Key Features

• 7" 1024 x 600 display with Projected Capacitive multi-touch (P-CAP)
• Fanless cooling and ultralow power consumption
• Power over Ethernet (PoE) support (IEEE 802.3at PD, 25 W)
• Optional 2 MP front camera
• Optional HF RFID reader (13.56 MHz)
• Front panel rated IP65 for dust and splash protection
• Built-in RGB LED status light bar
• Supports Android (default) and optional Linux distributions

Product Highlights
PoE consolidates data and power in a single cable, simplifying installation and enabling centralized power management for access control and industrial automation deployments.

Stylish Design
The S-series panel is notably thinner than traditional panel PCs and features a true flat front for easy cleaning and reduced dust accumulation.

P-Cap Touch
Glass cover lens with scratch resistance supports 4-point multi-touch for responsive fingertip operation in operator interfaces.

LED Light Bar & HF RFID/NFC
Integrated RGB LED light bar provides remote visual status indication with programmable colors (red, green, blue, orange). Optional HF RFID/NFC enables limited access control and personnel identification.

Front IP65 Protection
The sealed front panel meets IP65 to protect against dust ingress and water splashes for reliable operation in industrial environments.

Certifications

• CE
• FCC

Specifications

• Display: 7.0 inches, Projected Capacitive Multi Touch, 1024 x 600, 1000 nits, 700:1 contrast, active area 153.6 x 90 mm, view angles 75/75/75/70
• Processor: ARM A53 (Quad Core 2.0 GHz)
• Memory: 4 GB LPDDR4
• Storage: eMMC onboard 32 GB
• OS: Android 11 (default, upgradable to Android 13); optional Linux Yocto 5.15.47 with Qt 5.15; optional Ubuntu Server 22.04
• Wireless (optional): WLAN, Bluetooth
• RFID: HF 13.56 MHz (optional)
• Light Bar: Built-in RGB LED status light bar
• Dimensions: 189.4 x 145.4 x 40 mm; Cut-out: 175.5 x 131.5 mm; Weight: 1.0 kg
• Mounting: Panel mount, VESA mount; Enclosure: Metal housing; Cooling: Fanless
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temp 0°C–50°C; Storage temp -20°C–60°C
• Shock & Vibration: MIL-STD-810H Method 516.8 Proc I; Method 514.8 Proc I
• IP Rating: Front IP65
• Certifications: CE, FCC
• IO Ports: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG; 1 x RS232/422/485 (default RS232); 1 x LAN 10/100/1000 Mbps; 1 x Micro HDMI output (optional); 1 x Speaker; 1 x Micro SD slot (max 32 GB)
• Power: 12V DC via terminal block; Adapter 12V 50W; PoE (PD) IEEE 802.3at (25 W)
• Camera: Front 2 MP (optional)
• Accessories: 100~240V AC to DC adapter, power cord, terminal block to 2.5Ø female adapter cable, open wire cable with terminal block connector, VESA screws
